3mm Stainless Duplex Wire Rope Clip/Grip - 309.101.003
3mm Stainless Duplex Wire Rope Clip/Grip - 309.101.003
常规价格
£1.13 GBP
常规价格
£0.00 GBP
促销价
£1.13 GBP
单价
/
单价
结账时计算的运费。
Product Code
SKU:309.101.003
119 件存货
无法加载取货服务可用情况
- 用于 2.5 毫米 - 3 毫米 7x7 和 7x19 电缆的双工夹
- 极高的耐腐蚀性
- 提供强大而可靠的眼部终端
- 抛光不锈钢表面
- 订购任意数量,无最低订购费

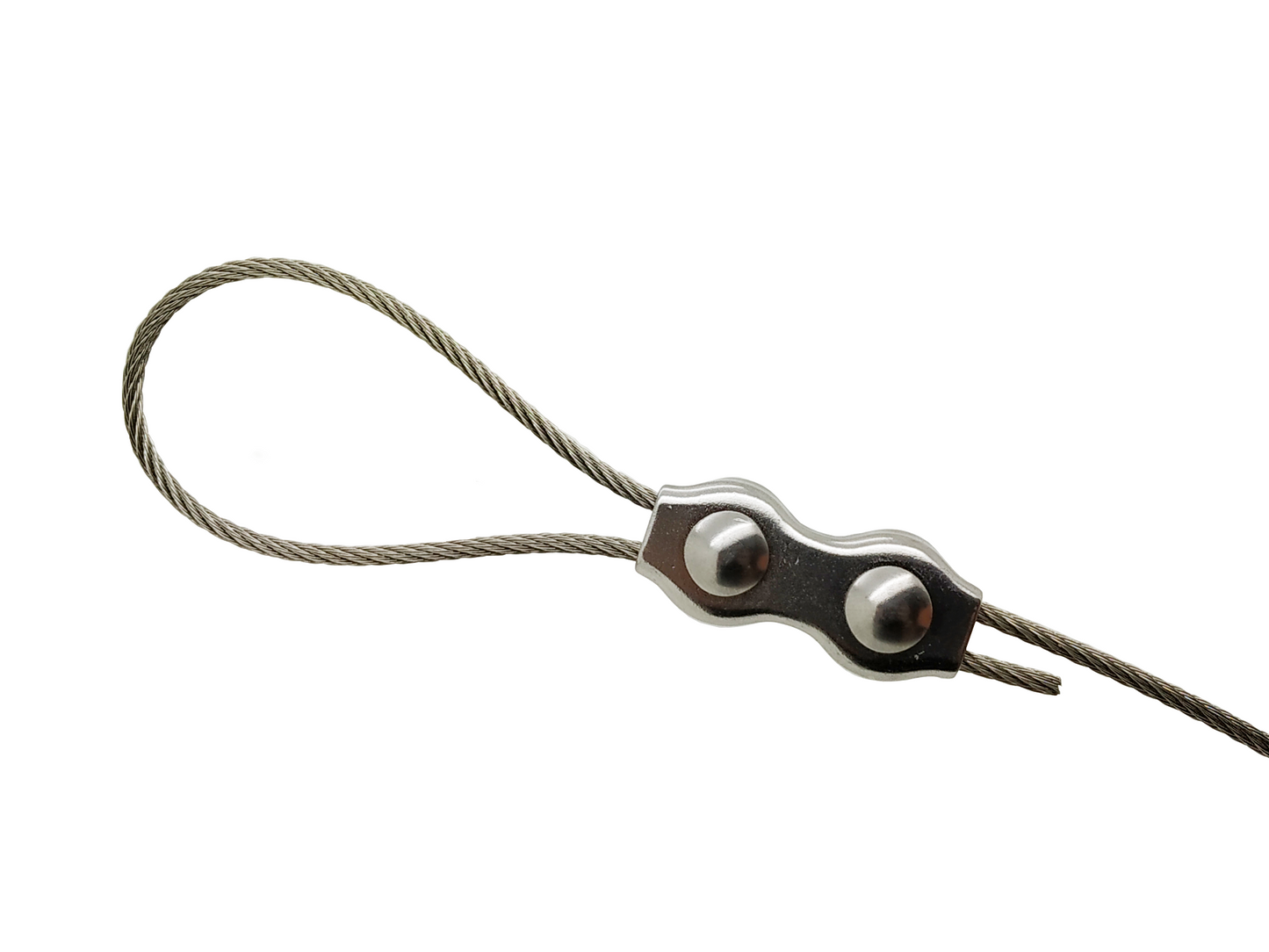

这款不锈钢双工钢丝绳夹可用于在 2.5 毫米 - 3 毫米 7x7 和 7x19 电缆结构中制作孔眼。只需将电缆绕在螺纹螺栓的每一侧,然后使用合适的扳手拧紧板即可。非常适合用于涂层电缆,例如用于端接晾衣绳。请下载我们的安全使用数据表,获取更详细的安装说明。
**双工夹具不适用于 1x19 结构电缆和 4mm 及以上的 7x7 结构电缆。近似失效负载为电缆断裂负载的 30% **不适用于起重**
Applications & Advice
Applications & Advice
** Duplex grips are not suitable for use with 1x19 construction cables. They should not be used with 7x7 construction cables of 4mm & above. Approximate failure load is 30% of the cable's breaking load. Not suitable for lifting. **
Technical Info
Technical Info

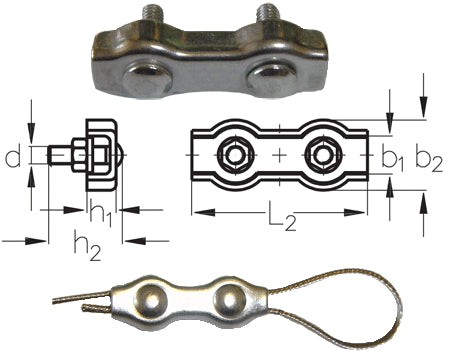

Dimensions
Dimensions
Cable Dia: 2.5mm - 3mm
b1: 6mm
b2: 14mm
d: M4
h1: 7mm
h2: 14mm
L2: 35mm
