顶针-EP-4-DIN6899BF

顶针-EP-4-DIN6899BF

£0.87 GBP
£0.87 GBP £0.87 GBP
促销 售罄
结账时计算的运费。

Product Code

110.310.004

434 件存货

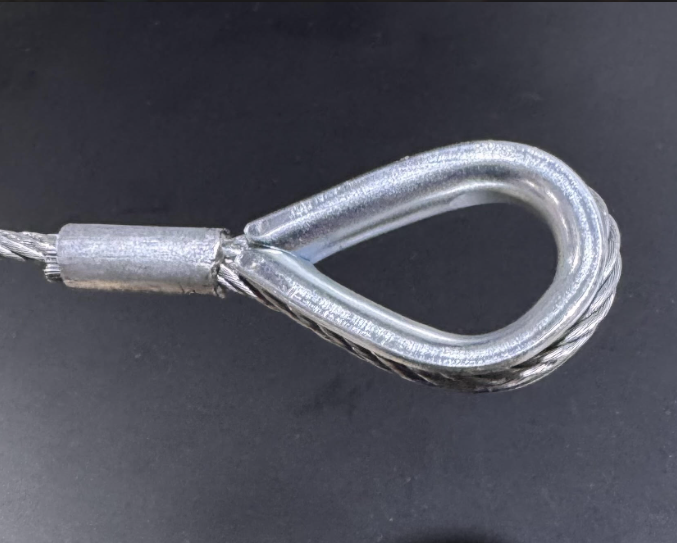

4mm DIN6899 BF 顶针


电镀钢丝绳索环适合与 4 毫米镀锌电缆一起使用。


典型应用：

钢丝绳滑索和吊索

绞盘电缆


如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。

Applications & Advice

The thimble itself does not hold the rope in place however are secured by using a ferrule or wire rope grips. Aluminium ferrules are recommended to use with electro plated/galvanised thimbles.

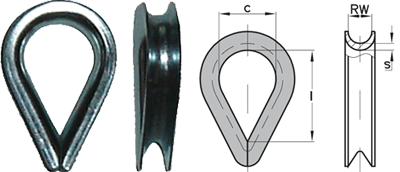

Dimensions

RW: 4mm
c: 13mm
l: 21mm
s: 1.2mm

Downloads

Thimble Datasheet
