球-SS-1.2-BA3

球-SS-1.2-BA3

£2.89 GBP
£0.00 GBP £2.89 GBP
促销 售罄
结账时计算的运费。

Product Code

127.000.012

26 件存货

1.2mm - 1.25mm (3/64") A2 AISI 304 不锈钢球接头

nbsp;

Loo的产品代码：BA3-1.5

满足以下所有要求：

波音 BACT14B

NAS494

符合 DFARS 标准

nbsp;

适用于 1.2 毫米 - 1.25 毫米电缆。由符合 MIL-DTL-781 规定的不锈钢制成，并经过相应标准认证。此类端接的预期强度为钢丝绳 MBL 的 50%。必须进行测试以验证组件的强度。

nbsp;

典型应用

nbsp;

飞机电缆

汽车工业 - 控制电缆

健身拉力器

nbsp;

如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。

Applications & Advice

This fitting can be pressed using the YCP120C tool or the YCP240C. With compatible ball die fittings (4.8mm ball).

Use for load bearing stops and retaining cable on winch drums.

Technical Information

Test Results of BA3 Ball Terminals using single pressing action (pressed in one plane) with the YCP240C Hydraulic Crimp Tool. Using 3/64" stainless steel cable and BA3 Ball fitting 127.000.012, the fitting pulled off at 93 kgs - 205 lbs.

Using 1/16" stainless steel cable and BA3 Ball fitting 127.000.015, the fitting pulled off at 107 kgs - 235 lbs.

Test Results of BA3 Ball Terminals using 2 pressing action with the YCP240C Hydraulic Crimp Tool. Using 3/64" stainless steel cable and BA3 Ball fitting 127.000.012, the assembly broke at 124kg, 273 lbs. Using 1/16" stainless steel cable and BA3 Ball fitting 127.000.015, the assembly broke at 171kg, 377lbs

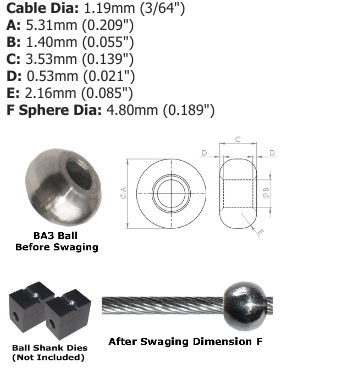

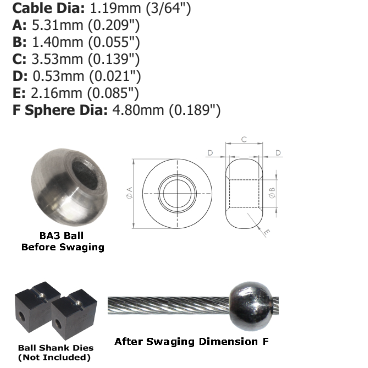

Dimensions

Dimensions

Downloads

Datasheet
