球-SS-3-MS20664-C4
球-SS-3-MS20664-C4
常规价格
£4.48 GBP
常规价格
£0.00 GBP
促销价
£4.48 GBP
单价
/
单价
Product Code
SKU:127.206.644
672 件存货
3mm (1/8") A2 AISI 304 不锈钢单柄球接头
nbsp;
Loo的产品代码:MS20664-C4
符合 DFARS 标准
nbsp;
适用于 3 毫米电缆。采用不锈钢制造,符合 MIL-DTL-781 和 MS20664 的严格标准。此类端部终端的预期强度为钢丝绳 MBL 的 90%。必须进行测试以验证组件的强度。
nbsp;
典型应用
nbsp;
汽车工业 - 控制电缆
nbsp;
如需制造要求支持、进一步帮助或信息,请联系我们的销售团队成员。
Applications & Advice
Applications & Advice
This fitting can be pressed using the YCP240C. With compatible ball die fittings (8mm ball).

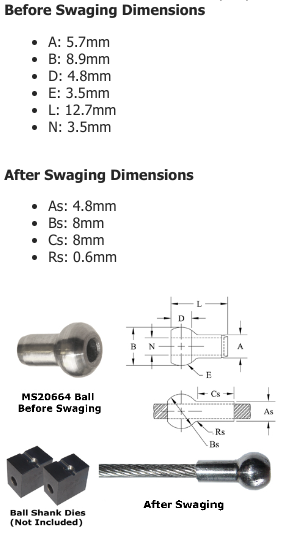

Technical Information
Technical Information
The MS20664 Series single shank balls are manufactured from stainless steel in accordance with MIL-DTL-781 to the strict standards of the MS20664, and are certified to that standard.
