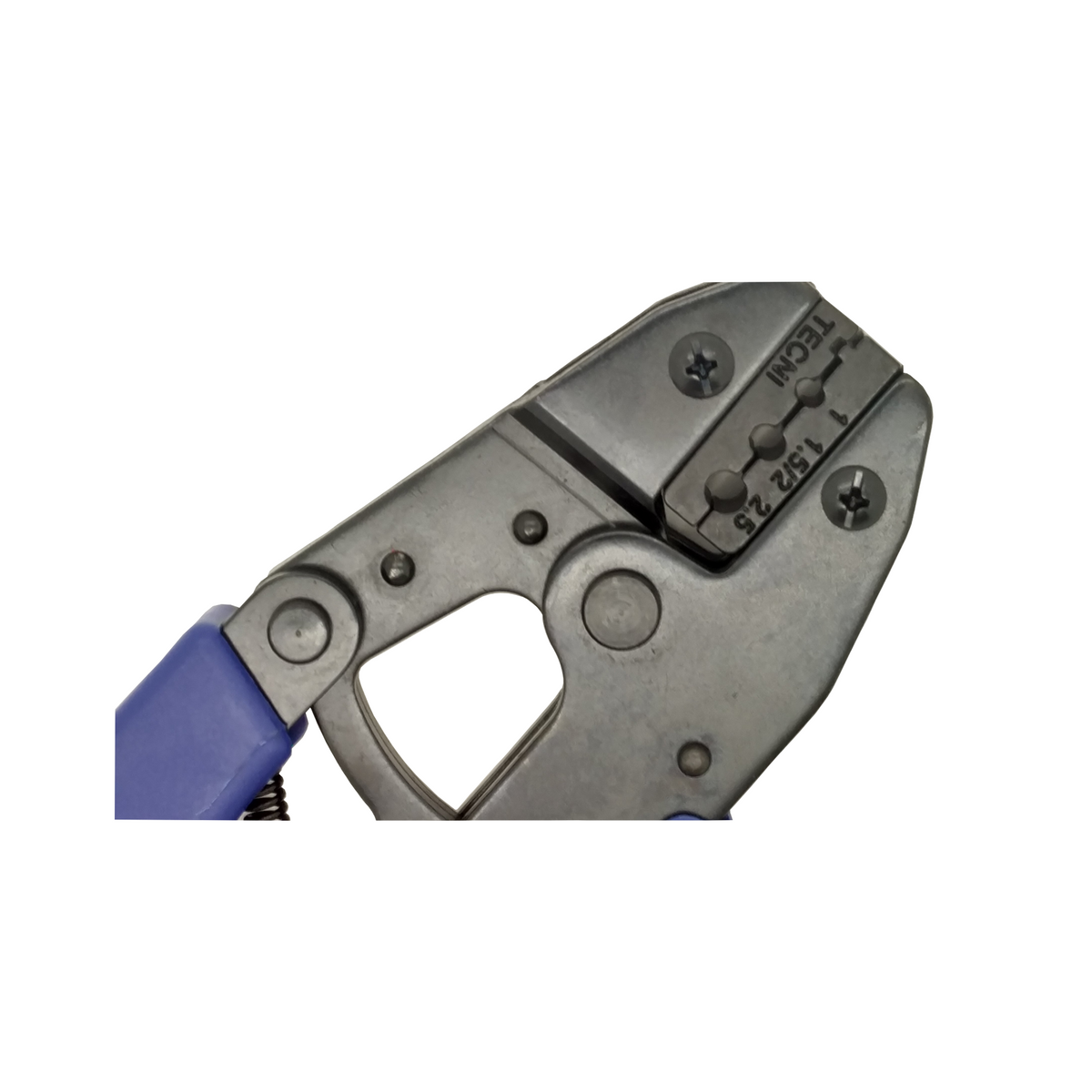

压接钳-TECNI-1-1.5-2-2.5

压接钳-TECNI-1-1.5-2-2.5

£72.96 UK VAT excl.
£87.55 UK VAT incl.
促销 售罄
结账时计算的运费。

Product Code

160.100.125

 更多支付选项
nbsp;
  • 定制压接工具 160.100.125
  • 可拆卸硬化钢模具
  • 提供强大而可靠的眼部终端
  • Talurit 密封圈现货供应
  • 可以翻转模具以改善通道和锻造强度

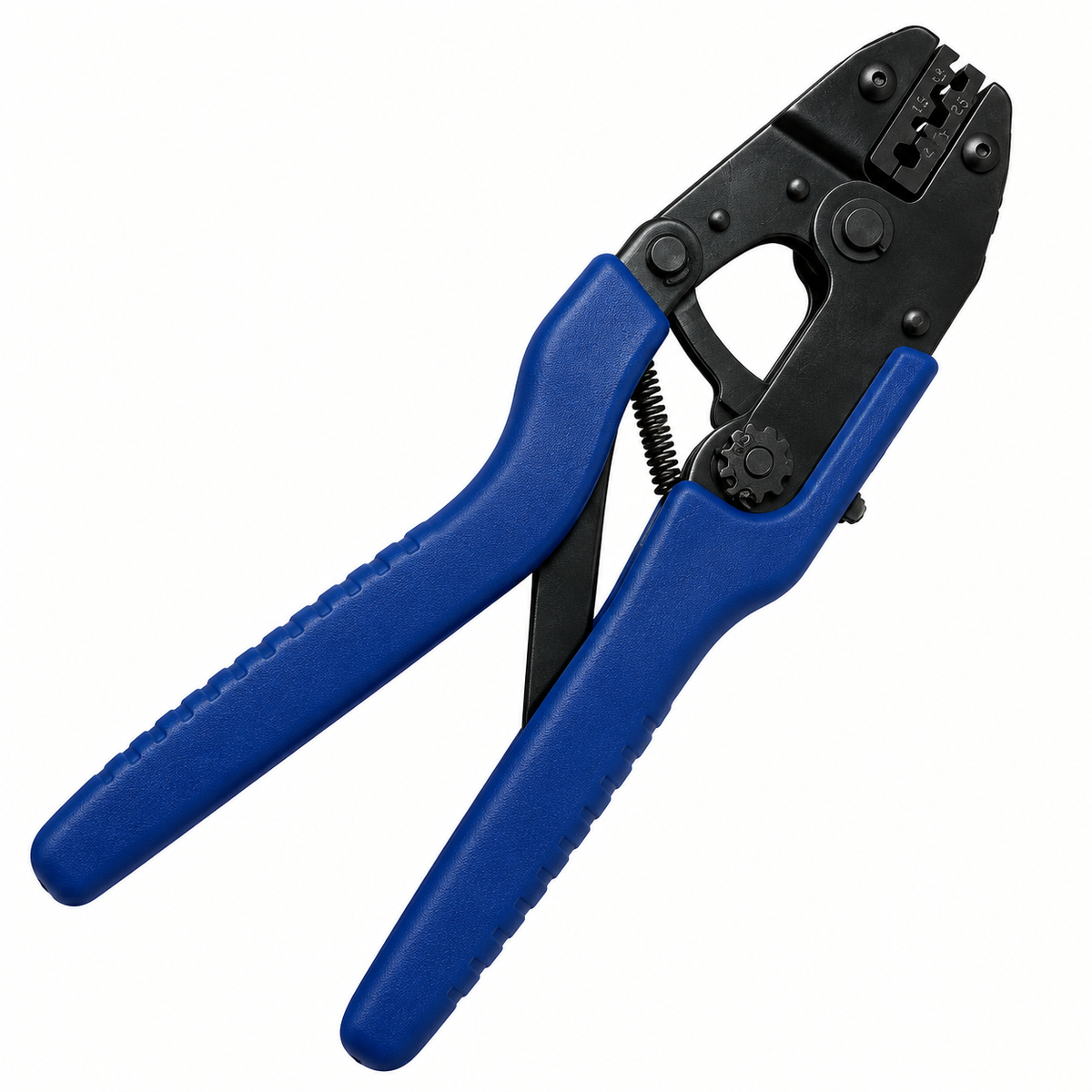

这款紧凑、价格实惠的手动压接工具配有可拆卸的硬化钢模具，用于端接 1mm、1.5mm、2mm 和 2.5mm TALURIT 铜和铝/铝套圈以及 Code 1.5 和 2 Stop 套圈。压接钳非常适合现场制造小型高强度组件，并且使用起来非常快速和简单。压接钳非常适合悬挂标志、电缆显示器、小型固定挂绳、标记电缆、商店配件等。

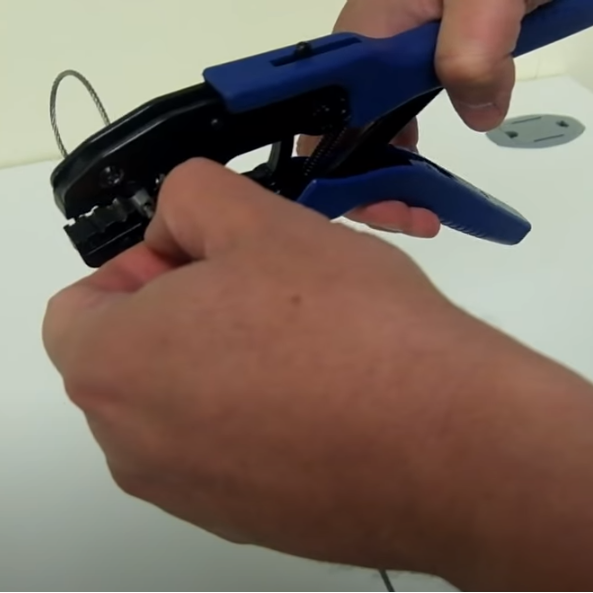

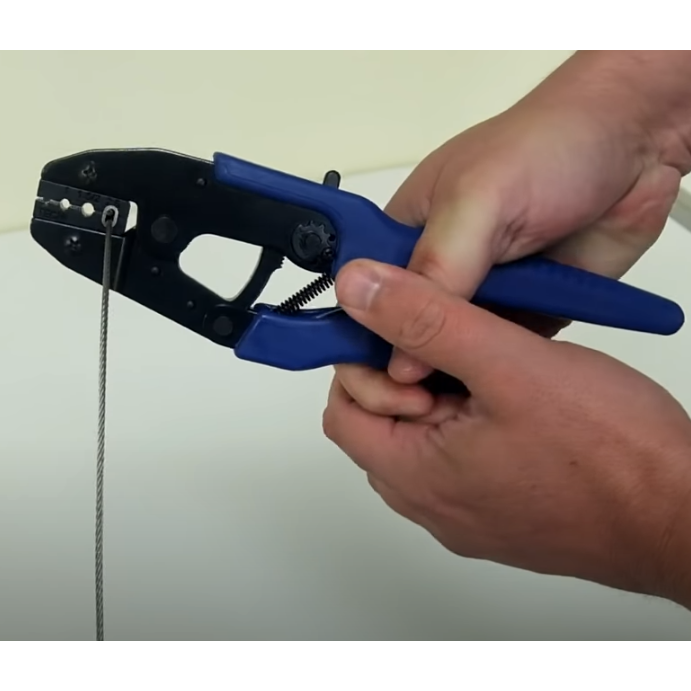

Ferrule sizes 1.5 and above require two crimping operations with the tool. Crimp 50% of the ferrule and then move the die head along and crimp the remaining 50% of the ferrule. Dies can be reversed to increase crimping force for code 1 ferrules. When pressed using the recommended procedure, copper and aluminium ferrules will hold in excess of 90% of the nominal strength of 7x7 or 7x19 galvanized or stainless steel. It is strongly recommended that each manufactured assembly is proof load tested for any safety critical applications.

Length (mm): 245
Width Closed Handles (mm): 70
Head Length (mm): 60
Head Width (mm): 55
Jaw Width: 45

Ferrule sizes 1.5 and above require two crimping operations with the tool. Crimp 50% of the ferrule and then move the die head along and crimp the remaining 50% of the ferrule.

Export Commodity Code 82032000 Files, rasps, pliers (including cutting pliers)
