切割机-16MM-CPC-20A-液压

切割机-16MM-CPC-20A-液压

常规价格 £383.76 GBP
常规价格 £0.00 GBP 促销价 £383.76 GBP
促销 售罄
结账时计算的运费

Product Code

SKU:101.000.020

TECNI CPC-20A 液压钢丝绳切割机


CPC-20A 提供 5.5 吨的切割力


该工具装在一个塑料手提箱中。


它具有双速动作和一个安全阀,当达到最大压力(5.5t)时会自动释放。


切割头可旋转 180 度,让您可以在不方便的位置舒适地切割。


适合切割:

  • 电缆直径最大可达 20 毫米
  • 6 股钢丝绳直径可达 16 毫米
  • 1x19 股线,直径最大 12 毫米
  • 最大抗拉强度 1960N/mm2 (1960 MPa) 非压实钢丝绳


不建议切割抗拉强度较高或压缩的钢丝绳,这将大大缩短切割器的使用寿命并使产品保修失效。

Applications & Advice

These cutters are designed to cut Maximum 1960N/mm2 (1960 MPa) Tensile Strength Non-Compacted Steel Wire Rope. Cutting higher tensile or compacted wire ropes is not recommended and will significantly reduce the lifespan of the cutters and invalidate the product warranty.

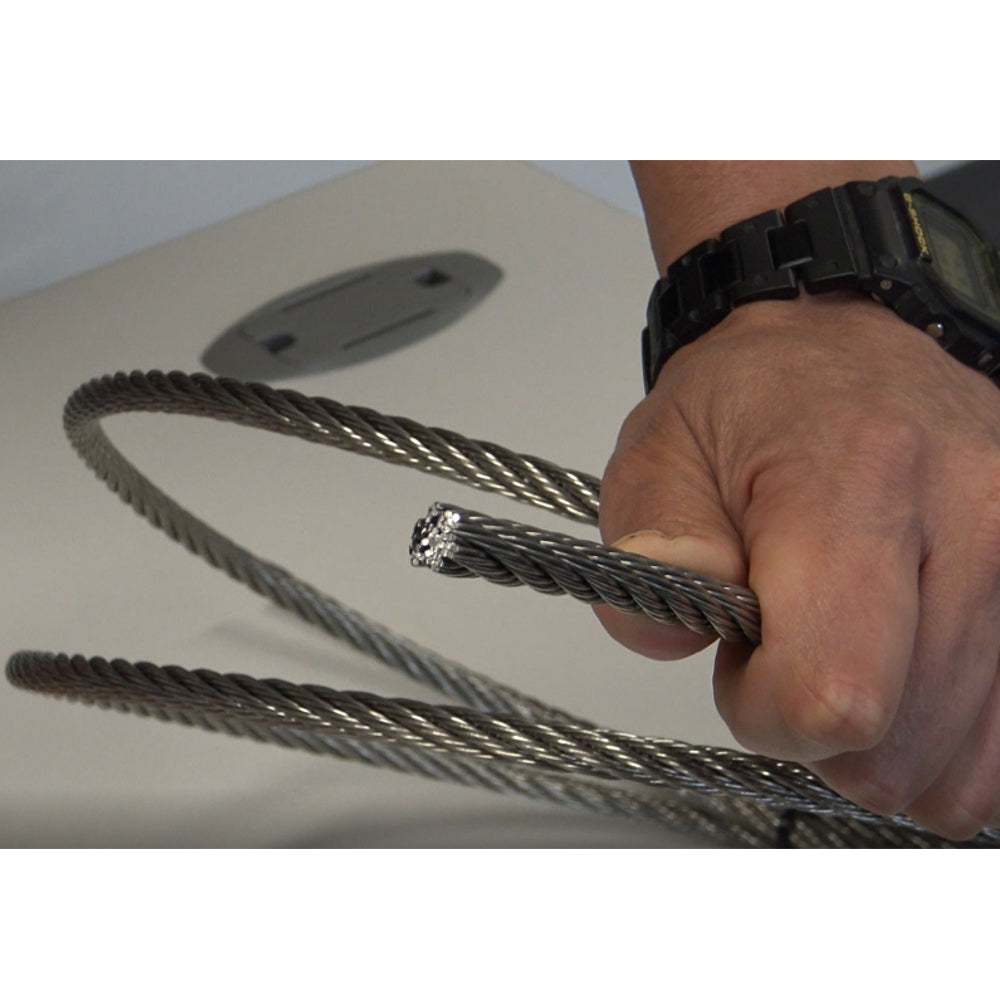

Using a wire rope cutter ensures that the cable retains a consistent circular cross section which simplifies threading into fittings & speeds up production considerably


Recommended Grade of Oil: ISO 32 Hydraulic Oil.

Spare cutter blades available.

Using the Tool

  • (1) Turn the On/Off Valve to the Off position to ensure full blade opening.
  • (2) Open release catch to open the blades or feed cable through the cutting head.
  • (3) Ensure that the cable is kept at 90 degrees to the blade during cutting.
  • (4) Severe cutting angles can damage the tool and the cutting blade.
  • (5) Turn the On/Off Valve to the On position and pump the handle to advance the cutting blade.
  • (6) To protect the tool it has a cut out feature when maximum pressure is reached.
  • (7) Stay within the maximum cutting capacity of the tool as listed in the table above.
  • (8) Keep the cutter head clean using a spray type lubricant like WD40 or equivalent.



Technical Information

Material: Metal Body & Handle = Pressed Painted Steel

Head = Zinc Plated Cast Steel

Blades = Hardened Steel

Plastic Handle = Moulded PVC

Dimensions

Length: 420mm
Weight: 3.66kg
