切割机-3MM-4062
切割机-3MM-4062
常规价格
£3.97 GBP
常规价格
£3.97 GBP
促销价
£3.97 GBP
结账时计算的运费。
Product Code
SKU:100.004.062
数量
120 件存货
无法加载取货服务可用情况

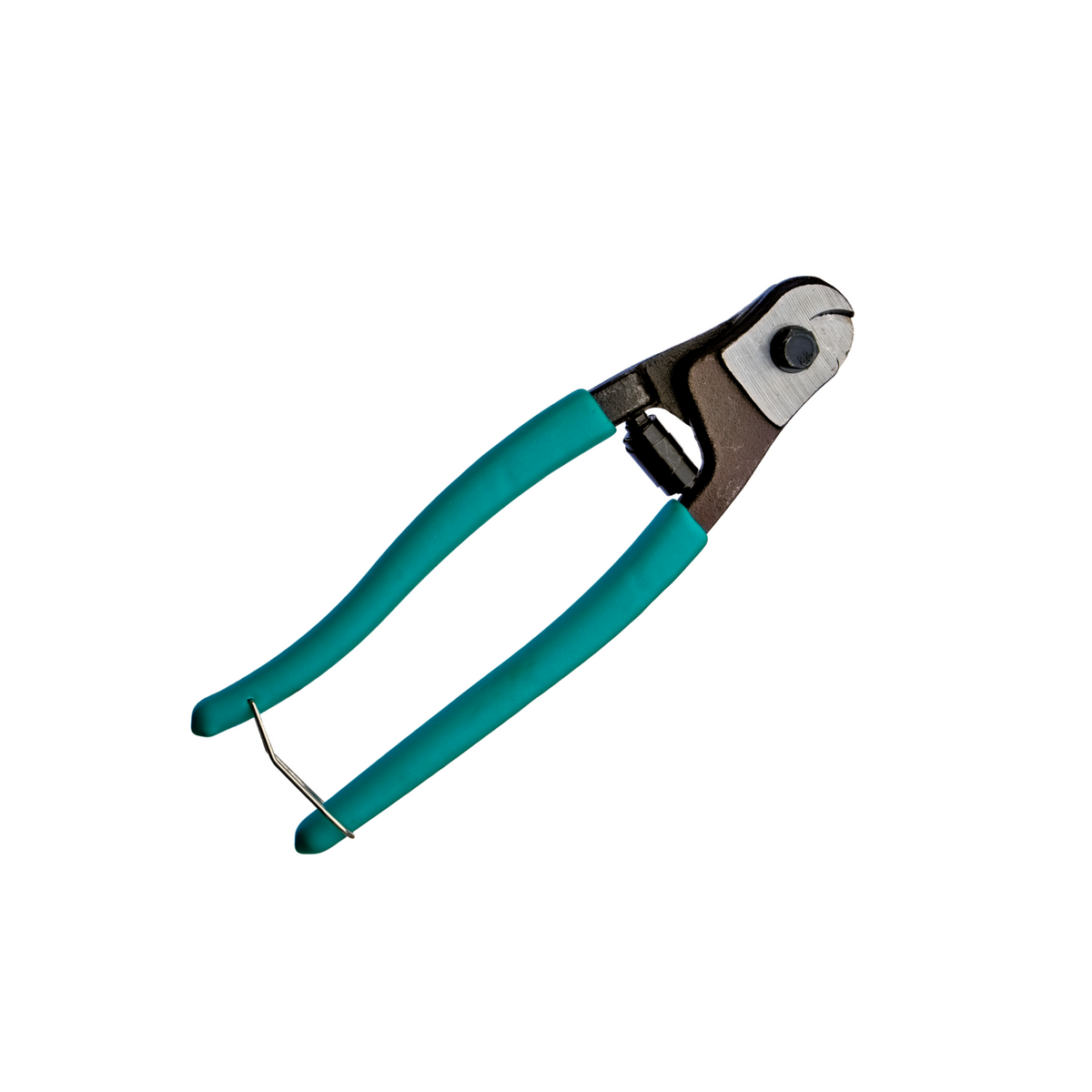

- 这是一款实用的钢丝绳切割机,为小型和一次性项目提供极佳的性价比。
- 非常适合珠宝线和小型项目
- 紧凑、轻便且非常易于操作。
- 可切割直径达 3 毫米(1/8 英寸)的钢丝绳。

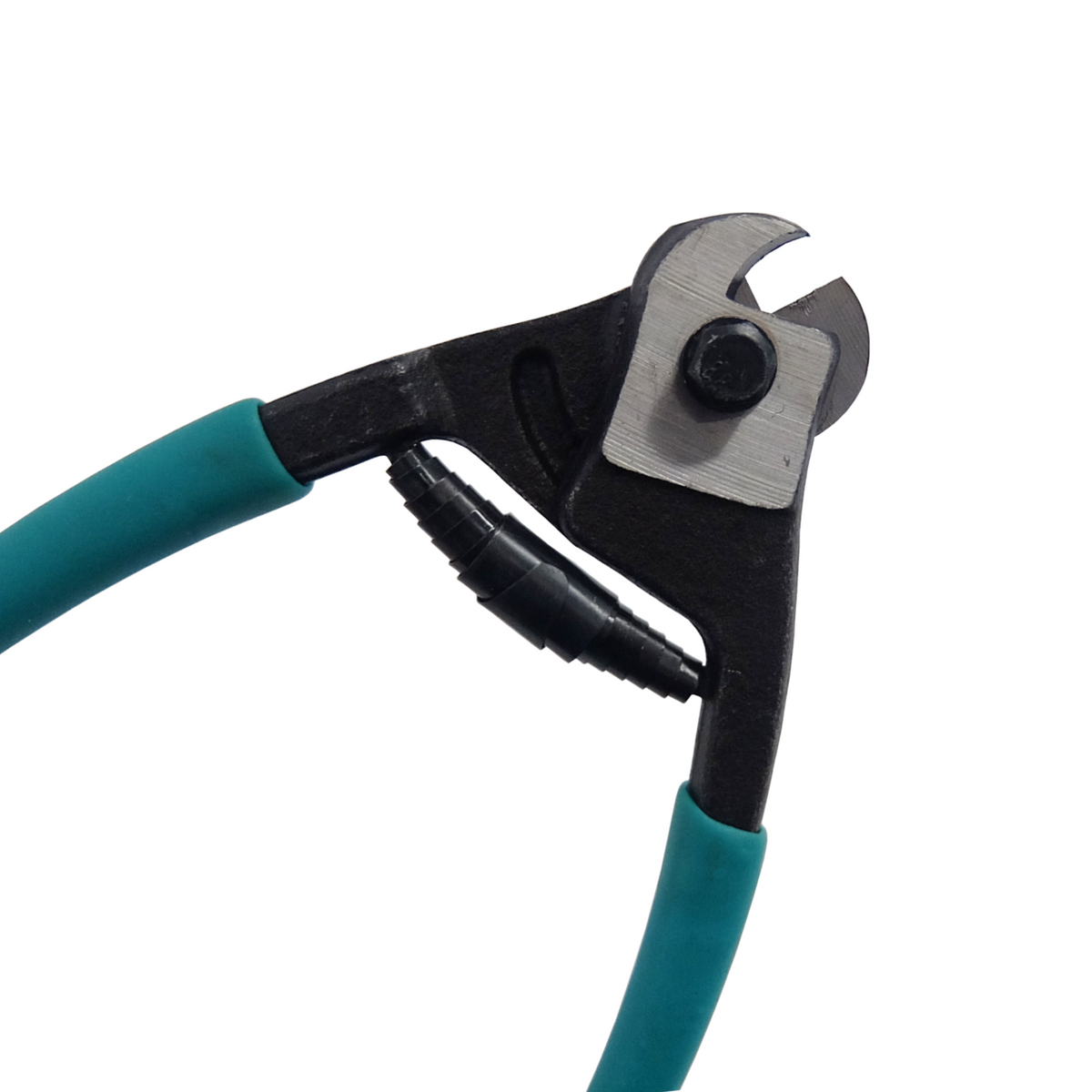

- 硬化钢刀片,配有 PVC 涂层钢手柄。
- 这些切割器设计用于切割最大抗拉强度为 1960N/mm2 (1960 MPa) 的非压缩钢丝绳。不建议切割抗拉强度更高或压缩的钢丝绳,否则会大大缩短切割器的使用寿命并使产品保修失效。
- 安全锁扣可防止意外打开。
- 不适用于 3mm 1 x 19 电缆 - 请使用TECNI 4mm 切割器
Applications & Advice
Applications & Advice
Suitable for cutting:
- Steel wire rope up to 2mm diameter
- 7x7 and 7x19 wire rope constructions
- Jewellery wire
- Small wire rope and cable projects
- General light-duty applications
Cutting higher-tensile or compacted wire rope is not recommended, as this may reduce the lifespan of the cutters and will invalidate the product warranty.
Technical Info
Technical Info
Designed for cutting non-compacted steel wire rope up to 2mm diameter, including 7x7 and 7x19 constructions, with a maximum tensile strength of 1960 N/mm². Not suitable for higher-tensile or compacted wire rope.
Dimensions
Dimensions
Length:200mm
Width:50mm
Head Length:52mm
Head Width:28mm
Max Cut (cable):3mm (1/8")
