眼-SS-1.5MM-5.18MM

Name: 眼-SS-1.5MM-5.18MM
Brand: TECNI
SKU: 100.204.102
Price: 1.33 GBP
Availability: InStock

£1.33 GBP

~~£0.00 GBP~~ £1.33 GBP

促销售罄

结账时计算的运费。

Product Code

SKU:100.204.102

数量

现货

这款紧凑且适应性强的 AISI 304 不锈钢压接端子专为 1/16 英寸 1.5 毫米电缆而设计。非常适合悬挂、商店配件和安全电缆。

Applications & Advice

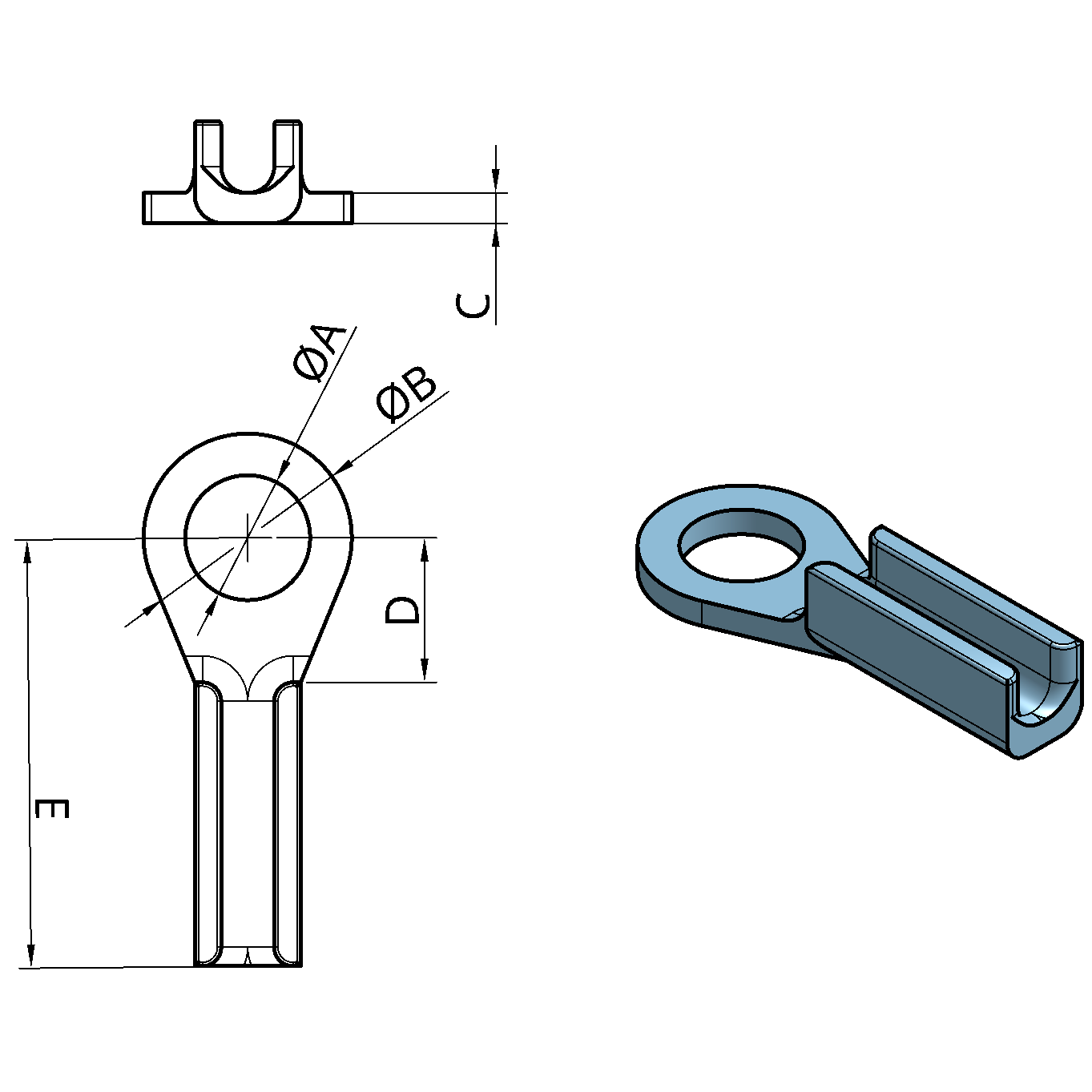

To Fit Wire Rope Dia (in) 1/16" (1.6mm)

A Pin Hole (in) 0.204 (5.2mm)

B (in)0.46 (11.68mm)

C (in)0.06 (1.52mm)

D (in)0.4 (10.16mm)

E (in)0.978 (25mm)

Max. Holding Strength: 180 kgs (400 lbs)

Material Type: S.S. A2-AISI 304 Stainless Steel

Wt/100 pcs: 0.29 kgs (0.65 lbs)
