套圈-AL-2-STOP

Name: 套圈-AL-2-STOP
Brand: Talurit (UK) Ltd
SKU: 100.315.020
Price: 0.11 GBP
Availability: InStock

£0.11 GBP

~~£0.11 GBP~~ £0.11 GBP

促销售罄

结账时计算的运费。

Product Code

SKU:100.315.020

2350 件存货

Talurit ™ Code 2 铝制止动套圈。

nbsp;

R 端止动件适合与 1mm-2mm 电缆一起使用。

nbsp;

铝和铜端止动件不适用于起重应用。它们设计用于悬挂和定位目的。这种类型的端接预期强度约为钢丝绳 MBL 的 50%。必须进行测试以验证组件的强度。

nbsp;

铝制止动套圈最适合与镀锌电缆一起使用，但可以在非海洋环境中与不锈钢一起使用。nbsp;

nbsp;

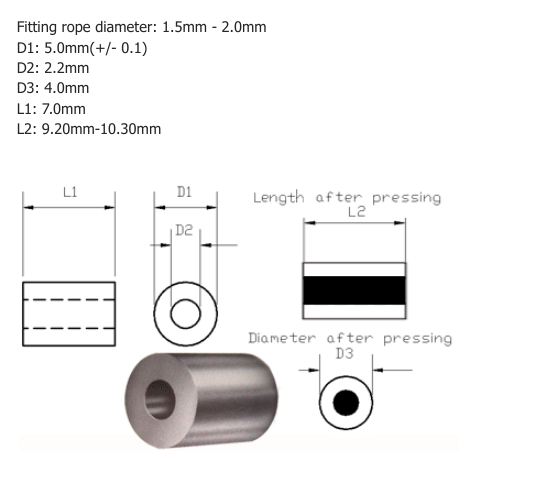

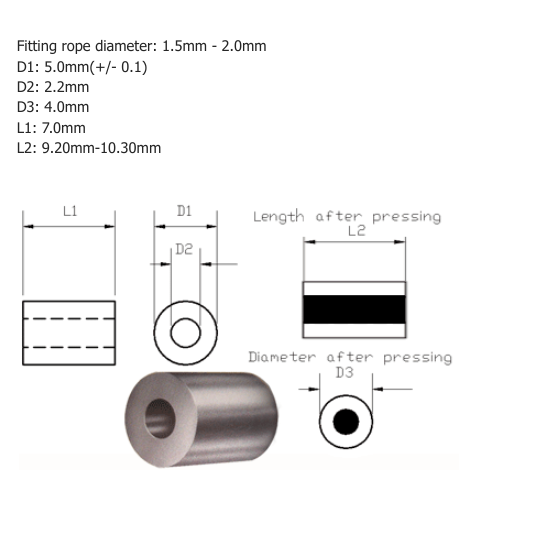

尺寸有 1.5 - 32 可供选择。铝合金为符合 EN 573-3 标准的 EN AW-5051A，并符合 EN13411-3 中的材料要求。

nbsp;

如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。

Applications & Advice

Available in sizes 1.5–32. Manufactured from EN AW-5051A aluminium alloy in accordance with EN 573-3 and compliant with the material requirements specified in EN 13411-3.

Typical applications:

Suspension and Locating purposes

Suitable Cable Types:

Galvanised Steel

Stainless Steel in a Non Marine environment

Tool Selector

Technical Info

Aluminium and Copper end stops are not suitable for lifting applications. They are designed for suspension and locating purposes.

The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.
