Kwik-Loc KL50 Cable Grip for 1mm 7x7 & 1.25mm 7x7 Cable. Max Suspension SWL 15 kgs - 113.012.012

Typical applications:

Suitable areas of use include, but are not limited to:

• Electrical containment
• Lighting and audio
• HVAC and mechanical services
• Signage, display, screens and partitions
• Acoustic and radiant heat panels
• Bracing
• Catenaries

This product is also excellent with 7x19 cable constructions but make sure you apply the 5:1 factor of safety based upon the size and construction of cable selected. We would recommend you use wire rope cutters for neat cable ends to ensure easy installation.

Zip-Clip has five different systems which are allocated a letter to differentiate between the available safe working loads (SWL).

Each system comprises a specific wire rope diameter and is supplied with the required Zip-Clip device.

Safe Working Loads

G 15 kg

S 50 kg

Y 120 kg

P 300 kg

N 500 kg

*Please note that all stated working loads and certifications are based on the product being used in conjunction with the High Tensile Zip-Clip Rize Wire

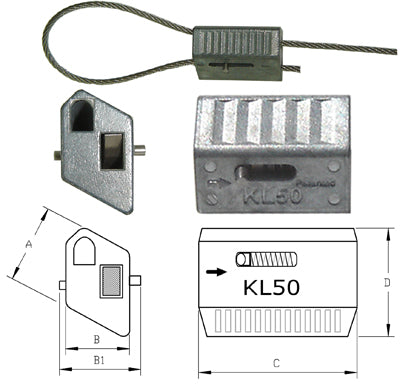

A: 9.3mm
B: 11mm
B1: 15mm
C: 19mm
D: 14.5mm

(see photo above for reference)
