• TECNI Black stainless steel turnbuckle Hook and eye on a white background. Used for tensioning cable systems. - 228.246.406

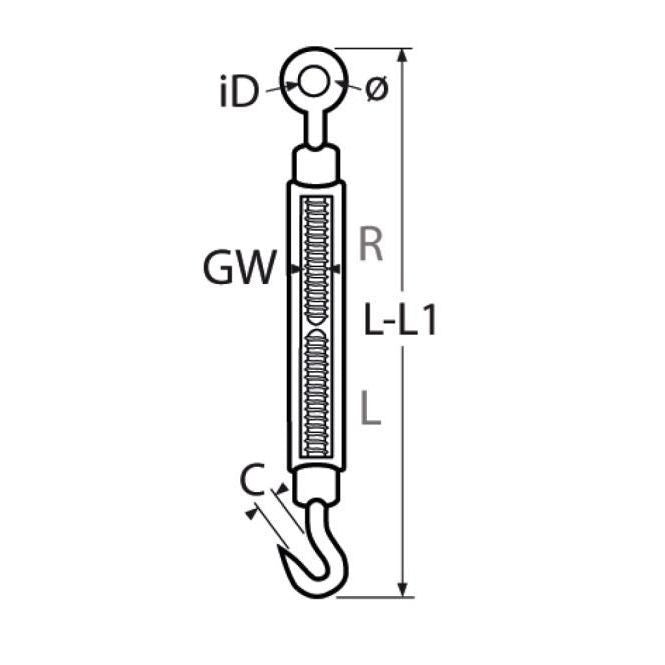

  • Technical diagram of a turnbuckle with labeled measurements on a white background - 228.246.406
1 2

M5 A4-AISI 316 Black Stainless Steel Hook & Eye Turnbuckle - 228.246.405

M5 A4-AISI 316 Black Stainless Steel Hook & Eye Turnbuckle - 228.246.405

£4.37 GBP
£4.37 GBP £4.37 GBP
促销 售罄
结账时计算的运费。

Product Code

228.246.405

低库存：剩余 10

M5 Marine Grade Black Stainless Steel Hook & Eye Turnbuckle



Manufacturers Breaking Load: 550kg

Ideal for tensioning 2mm to 2.5mm cable.

Internal diameter of eye: 8mm

Length fully closed: 112mm

Length fully open: 165mm

Applications & Advice

Suitable for tensioning 2mm - 2.5mm wire rope systems such a catenary and trellis.

Perfect for Marine environments or general outdoor use.

Dimensions

Thread (GW) :M5

Opening width (C) :7.5 mm

Thread type :Metric thread

Material number :1.4401Material :Stainless steel A4 - AISI 316

Telescoping lenght :Infinitely adjustable

Length (L) :165 mm

Length 1 (L1) :110 mm

Material-diameter (ø) :4.3 mm

Inside diameter (iD) :8 mm
