M6 A4-AISI 316 Stainless Steel Dome Nut DIN 1587 - 208.158.746

M6 A4-AISI 316 Stainless Steel Dome Nut DIN 1587 - 208.158.746

£1.42 GBP
£1.42 GBP
促销 售罄
结账时计算的运费。

Product Code

208.158.746

162 件存货

The M6 Hexagon Dome Nut is manufactured from marine-grade A4 AISI 316 stainless steel to DIN 1587 specifications, offering excellent corrosion resistance for indoor, outdoor and marine applications.

Featuring a polished stainless steel finish and a decorative rounded dome, this nut provides a neat, professional termination while concealing exposed threaded ends.

Designed for use with compatible M6 right-hand threaded studding, bolts and fittings, it is ideal for architectural, marine and decorative fastening applications.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • Decorative terminations on M6 threaded studding
  • Architectural metalwork and exposed fixings
  • Marine and outdoor installations
  • Balustrade and handrail components
  • General stainless steel fastening applications

Use with compatible M6 right-hand threaded bolts, studs and fittings, ensuring the thread pitch matches the mating component. The rounded dome conceals the exposed threaded end, providing a decorative finish and reducing contact with protruding threads. Ensure sufficient internal clearance within the dome for the protruding stud or bolt. Excessive thread length may prevent the nut from tightening fully against the mating surface. Tighten using a suitable spanner or socket, taking care to avoid overtightening.

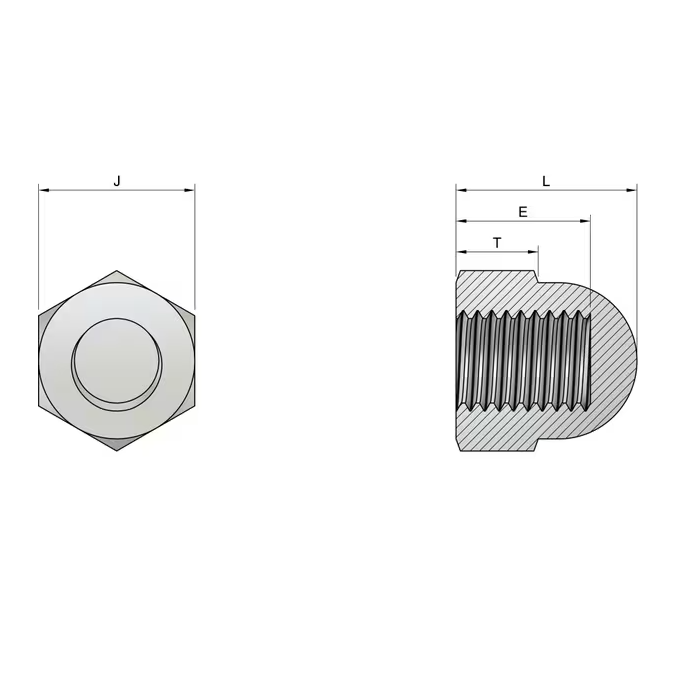

Dimensions

J : 10mm

T : 5mm

E : 8.29mm

L : 12mm
