M8 x 95mm A4 AISI 316 SS Anchor Bolt - Through Bolt - 163.095.658

M8 x 95mm A4 AISI 316 SS Anchor Bolt - Through Bolt - 163.095.658

£2.42 GBP
£2.42 GBP £2.42 GBP
促销 售罄
结账时计算的运费。

Product Code

163.095.658

565 件存货

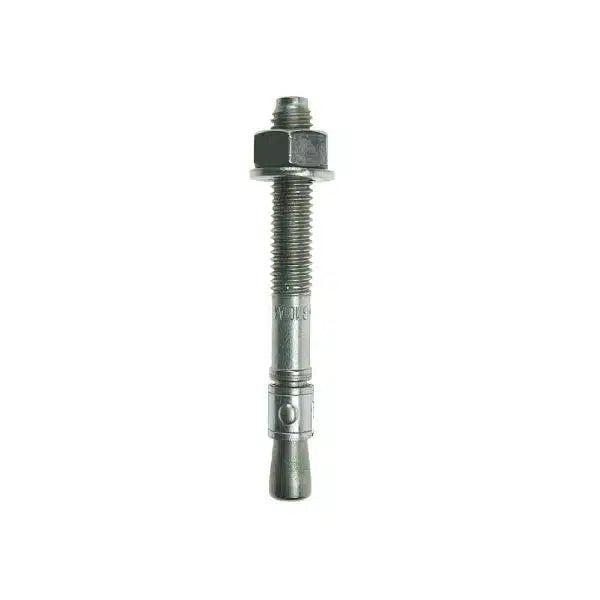

JCP M8x95mm A4-AISI 316 Stainless Steel Through Bolt c/w Nut & Washer - TSS08095

Heavy duty fastener for concrete, designed for through fixing where the fixture's clearance hole matches the drill hole

65mm embedment into wall and 30mm of visible thread.

Tightening torque 15Nm

Applications & Advice

Key Specifications:

  • M8: Metric thread size, 8mm nominal diameter.
  • 95mm: Total length of the bolt.
  • Hole Size: Requires an 8mm diameter hole in the concrete.
  • Fixture Clearance: The item being fixed needs a 10mm clearance hole (slightly larger than the bolt's M8 diameter) for the bolt to pass through.
  • Installation: Drilled into concrete, the expanding clip (or wedge) is set by tightening the nut, gripping the concrete for a strong hold
