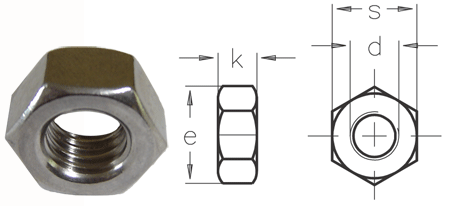

• A stainless steel hexagon nut with a visible threaded interior.
  • Technical drawing of a hexagon nut with dimensions on a white background.
1 2

螺母-SS-M5-A4-LH-DIN934

螺母-SS-M5-A4-LH-DIN934

£0.55 GBP
£0.55 GBP £0.55 GBP
促销 售罄
结账时计算的运费。

Product Code

303.511.405

909 件存货
  • 符合 DIN 934 标准的 AISI 316 级不锈钢螺母
  • 高度耐腐蚀
  • 抛光不锈钢表面
  • 库存中有许多兼容的 M5 螺纹配件
  • 订购任意数量，无最低订购费

这款适应性强、用途广泛的 M5 左手 A4-AISI 316 不锈钢 DIN 934 六角全螺母非常适合户外使用。

Applications & Advice

Typical Applications:

  • Left-hand threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Architectural metalwork and installations
  • Mechanical equipment and assemblies
  • Tensioning systems requiring left-hand threads

Use only with compatible M5 left-hand threaded bolts, studs and fittings. Left-hand threads tighten anticlockwise and loosen clockwise, unlike standard right-hand threads. Ensure the thread size, pitch and direction match the mating component before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

Dimensions

d:M5 LH
e:8.8mm
k: 4mm
s:8mm
