螺母-SS-M8-1-FINE-A4-RH-DIN934

螺母-SS-M8-1-FINE-A4-RH-DIN934

常规价格 £1.22 GBP
常规价格 £1.22 GBP 促销价 £1.22 GBP
促销 售罄
结账时计算的运费。

Product Code

SKU:303.515.408

数量

低库存:剩余 4

  • 符合 DIN 934 标准的 AISI 316 级不锈钢螺母
  • 高度耐腐蚀
  • 库存中有许多兼容的 M8 螺纹配件
  • 订购任意数量,无最低订购费

这款适应性强、用途广泛的 M8 RH A4-AISI 316 不锈钢六角细螺纹螺母符合 DIN 934 标准,适用于户外和海洋环境。

Applications & Advice

Typical Applications:

  • M8 x 1mm fine pitch threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Mechanical equipment and precision assemblies
  • Architectural metalwork and installations
  • Applications requiring fine pitch threaded connections

Use only with compatible M8 x 1mm right-hand threaded bolts, studs and fittings. The 1mm fine pitch differs from the standard M8 coarse thread pitch of 1.25mm. Ensure the mating component has the correct thread pitch before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

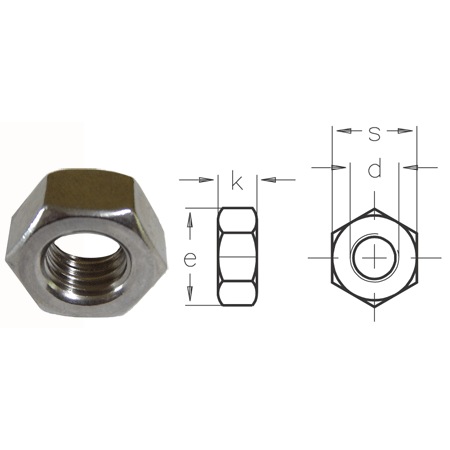

Dimensions

d: M8 RH
e: 14.4mm
k: 6.5mm
s: 13mm
