螺母-SS-M8-A4-LH-DIN934

螺母-SS-M8-A4-LH-DIN934

£1.28 GBP
£1.28 GBP £1.28 GBP
促销 售罄
结账时计算的运费。

Product Code

303.511.408

579 件存货
  • 符合 DIN 934 标准的 AISI 316 级不锈钢螺母
  • 高度耐腐蚀
  • 抛光不锈钢表面
  • 库存中有许多兼容的 M8 左手螺纹配件
  • 订购任意数量，无最低订购费

这款适应性强、用途广泛的 M8 左手 A4-AISI 316 不锈钢 DIN 934 六角全螺母非常适合户外使用。

Applications & Advice

Typical Applications:

  • Left-hand threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Architectural metalwork and installations
  • Mechanical equipment and assemblies
  • Tensioning systems requiring left-hand threads

Use only with compatible M8 left-hand threaded bolts, studs and fittings. Left-hand threads tighten anticlockwise and loosen clockwise, unlike standard right-hand threads. Ensure the thread size, pitch and direction match the mating component before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

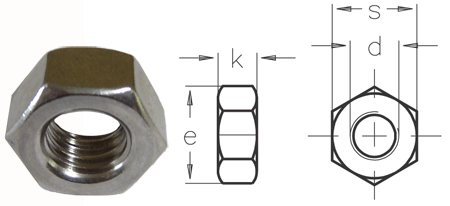

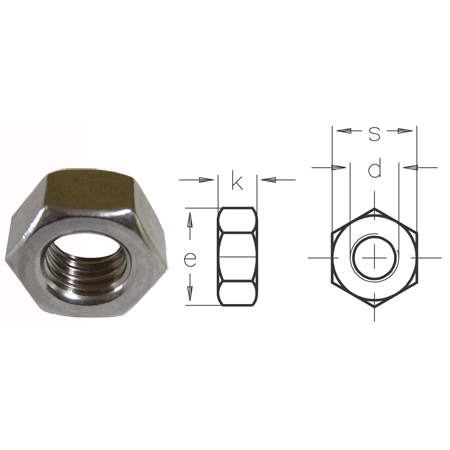

Dimensions

d: M8 LH

e: 14.4mm

k: 6.5mm

s: 13mm
