Stainless Steel Bow Shackles Screw Pin
Stainless Steel Bow Shackles Screw Pin
常规价格
£2.83 UK VAT excl.
£3.40 UK VAT incl.
£3.40 UK VAT incl.
常规价格
促销价
单价
/
单价
结账时计算的运费。
Product Code
SKU:308.300.004
125 件存货
无法加载取货服务可用情况

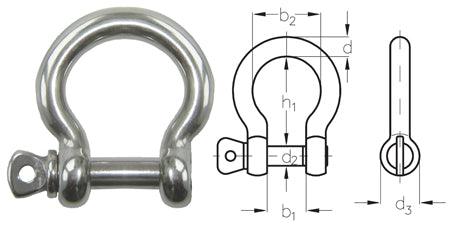

| Code | Material ⌀ (mm) | b1 (mm) | b2 (mm) | d1 (mm) | d2 (mm) | d3 (mm) | h1 (mm) | Weight (g) | Breaking Load (kgs) |
| 308.300.004 | 4 | 8 | 14 | 4 | 4 | 8 | 13 | 8g | 800 |
| 308.300.005 | 5 | 10 | 18 | 5 | 5 | 10 | 17 | 15g | 1200 |
| 308.300.006 | 6 | 12 | 21 | 6 | 6 | 12 | 20 | 28g | 1900 |
| 308.300.008 | 8 | 16 | 28 | 8 | 8 | 16 | 28 | 62g | 2800 |
| 308.300.010 | 10 | 22 | 35 | 10 | 10 | 20 | 37 | 117g | 4300 |
| 308.300.012 | 12 | 25 | 42 | 12 | 12 | 24 | 45 | 200g | 6500 |
Applications & Advice
Applications & Advice
This shackle is great for applications where the shackle pin needs to be removed quickly. Excellent for use on yachts and other marine activities.
Dimensions
Dimensions
See table
Downloads
Downloads
Technical Information
Technical Information
D Shackle Stainless Steel A4-AISI 316 Screw Pin 4mm to 16mm Sizes Detailed Description (SCA) Standard Stainless Steel Screw Pin D Shackles Manufactured from A4-AISI 316 Marine Grade Stainless Steel with Round Bodies and removable pins.
These are a very popular shackle for nautical use and have a manufacturers breaking strength so they can be use to suspend objects but they are not suitable for lifting operations. Sizes from 4mm to 12mm available online and larger sizes available from our manufacturing partners.
