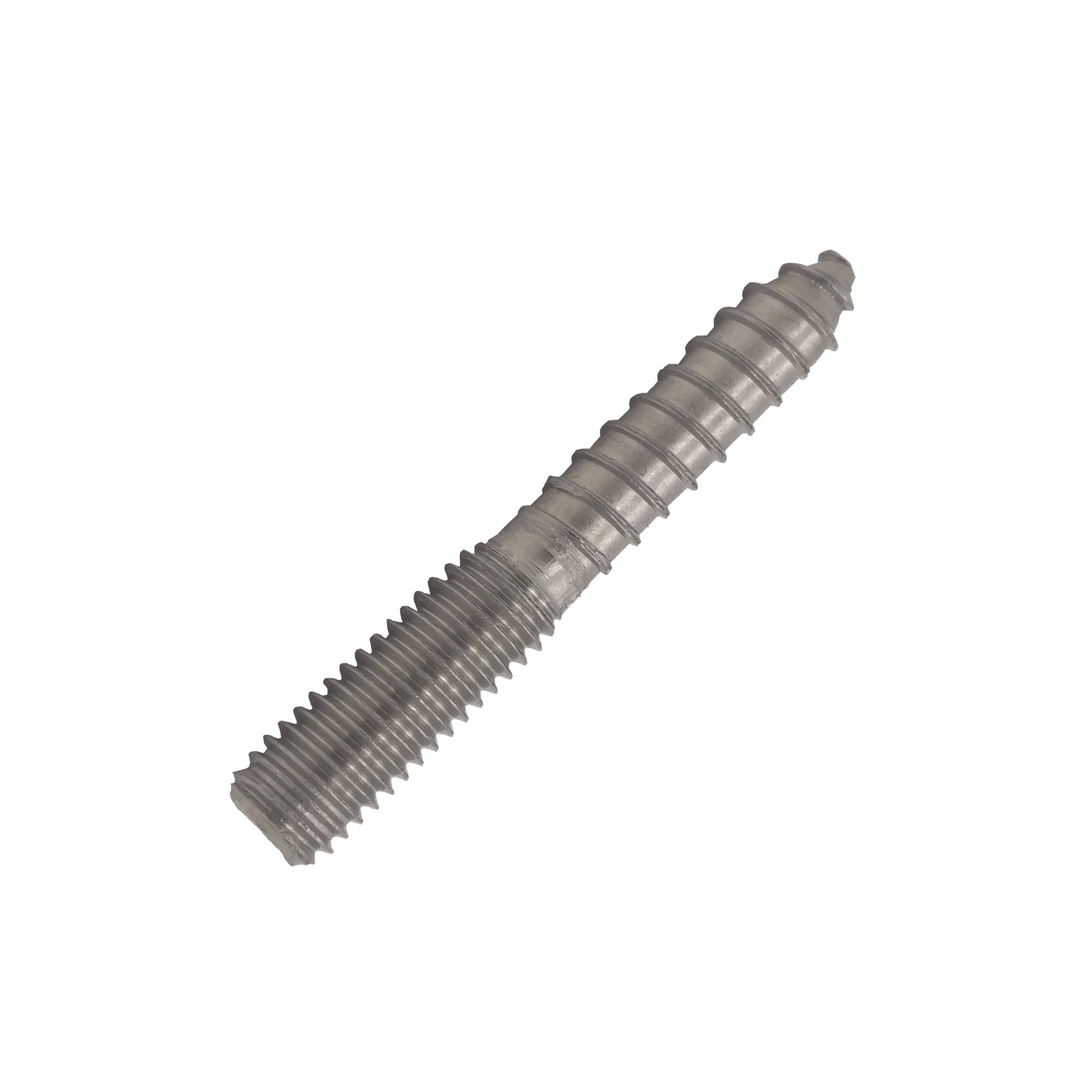

螺钉-SS-M6-A2-RH-10-35-双

Typical Applications:

• Cable trellis and green wall systems
• Crossover clips and cable grips
• Display and signage installations
• Timber-mounted cable systems
• General-purpose fixing application

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation.

The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread.

Alternatively, the machine-threaded section can be secured directly into a drill chuck for installation.

Use a low drill speed and torque setting to prevent damage to the threads.

d: 6mm

L: 50mm

H: 35mm

M: 11mm
