螺钉-SS-M6-A2-RH-25-37-双

螺钉-SS-M6-A2-RH-25-37-双

常规价格 £1.95 GBP
常规价格 £1.95 GBP 促销价 £1.95 GBP
促销 售罄
结账时计算的运费。

Product Code

SKU:208.072.206

数量

200 件存货

  • 耐腐蚀 - 适合户外使用
  • 允许轻松安装
这款 M6 RH 不锈钢双螺纹螺柱具有 25 毫米公制螺纹和 37 毫米木螺纹。非常适合栏杆、建筑、花园棚架和许多其他应用。

Applications & Advice

Typical Applications:

  • Cable balustrading systems
  • Garden trellis and green wall installations
  • Architectural cable fittings
  • Timber-mounted cable systems
  • Outdoor fixing applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure connecting fittings have a compatible M6 right-hand female thread.

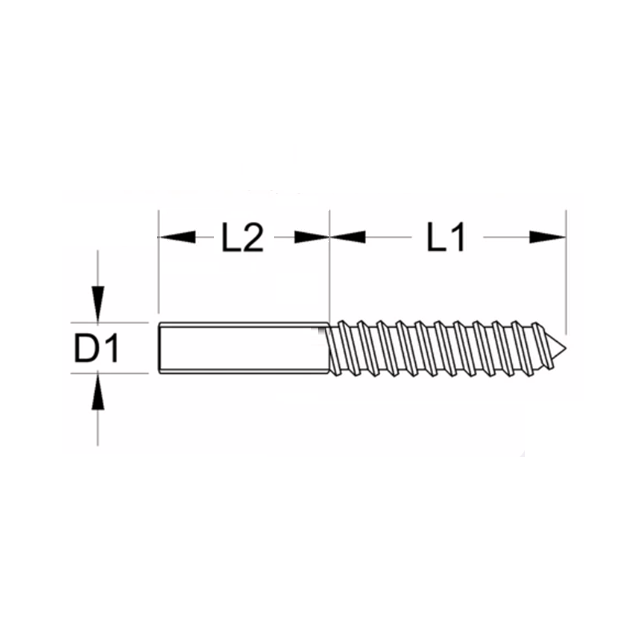

Dimensions

D1 - M6

L2 - 20mm

L1 - 47mm
