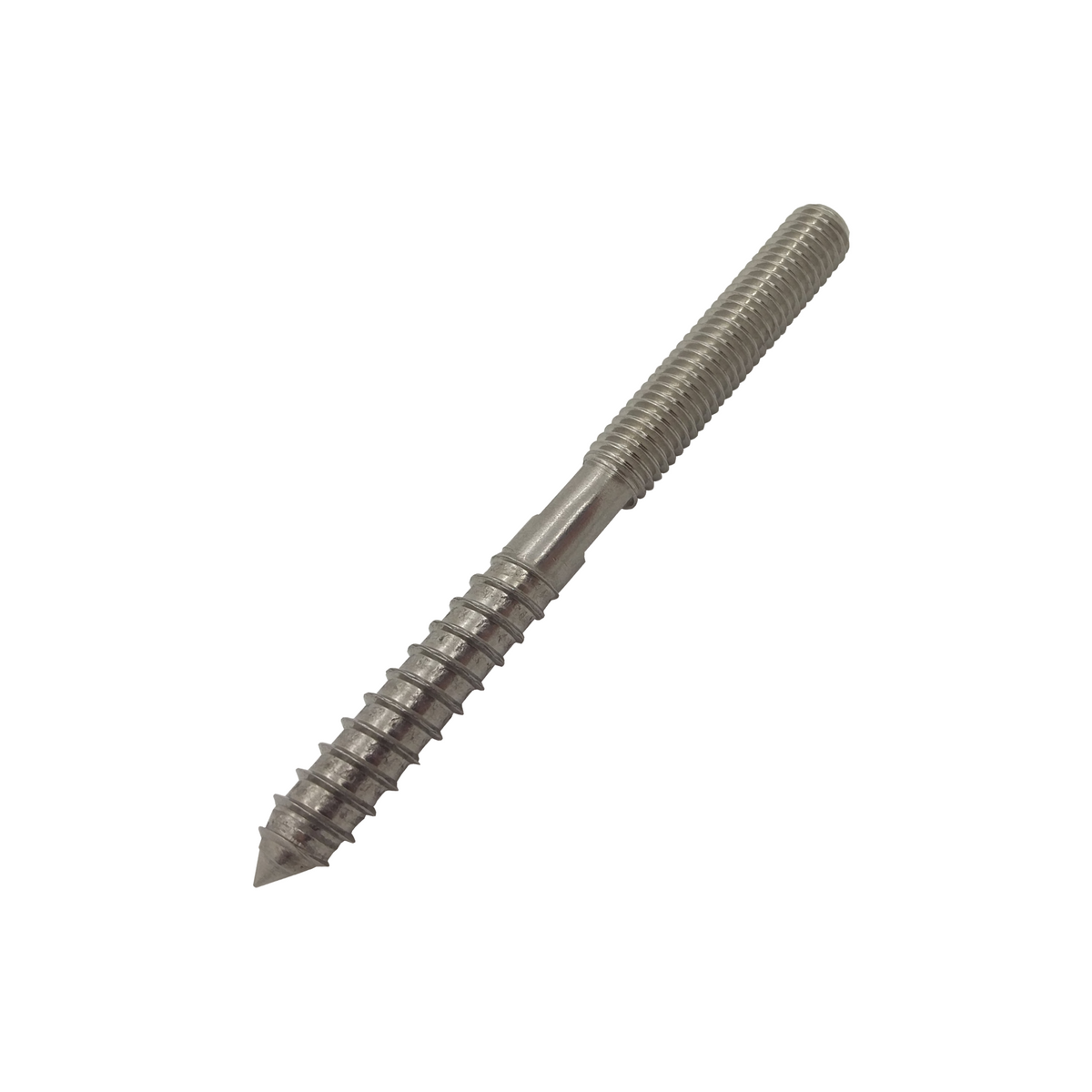

螺钉-SS-M8-A4-LH-40-40-DUAL

Typical Applications:

• Cable balustrading and tensioning systems
• Garden trellis and green wall installations
• Architectural cable fittings
• Timber-mounted fixing systems
• Marine and outdoor applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure connecting fittings have a compatible M8 left-hand female thread.

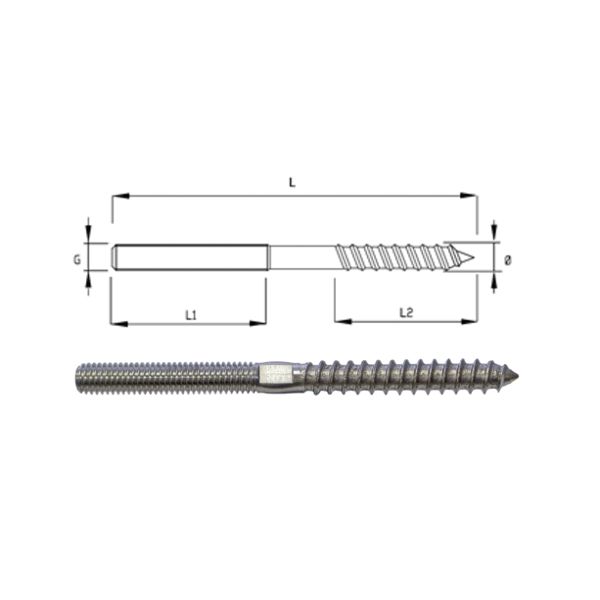

G Thread: M8 LH
L: 90mm
L1: 40mm
L2: 40mm
