螺钉-SS-M8-A4-RH-40-40-DUAL

螺钉-SS-M8-A4-RH-40-40-DUAL

常规价格 £2.70 GBP
常规价格 £0.00 GBP 促销价 £2.70 GBP
促销 售罄
结账时计算的运费

Product Code

SKU:208.515.408

  • AISI 316 级不锈钢螺柱
  • 高度耐腐蚀
  • 抛光不锈钢表面
  • 精密切割螺纹

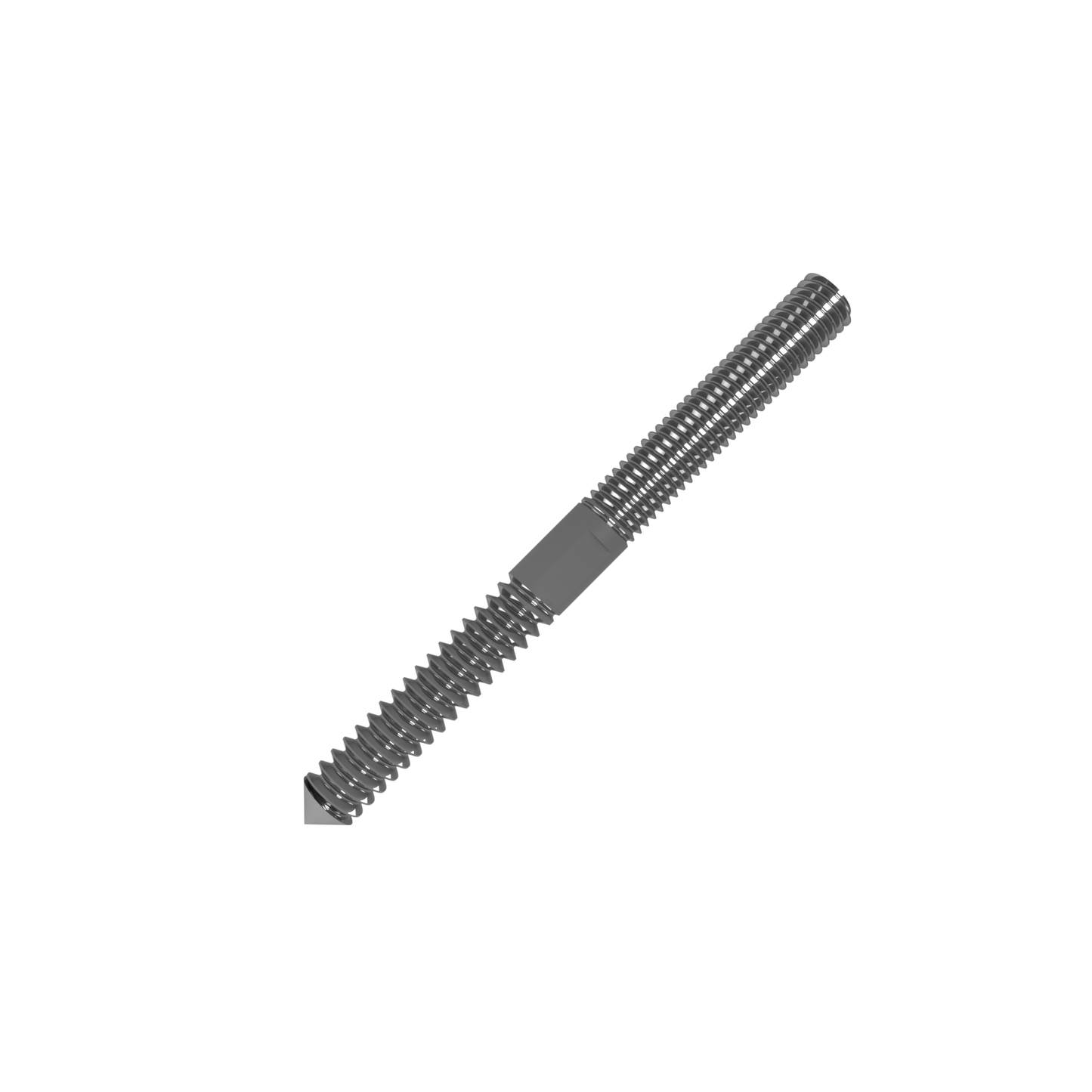

这款 M8 RH 不锈钢双螺纹螺柱具有 40 毫米公制螺纹和 40 毫米木螺纹。非常适合栏杆、建筑、花园棚架和许多其他应用。

也称为金属至木材的销钉螺钉和吊杆螺栓。

Applications & Advice

Always drill a pilot hole to prevent wood from splitting and to ease installation. You can use a socket drive to install this item by fitting a dome nut or two nuts locked off together on the end of the thread. The machine thread section can also be fitted directly into the chuck of a drill and this can then be used to drive the fitting into the pilot hole. Keep drill torque settings and drill speed as low as possible to prevent damage to the thread.

Technical Information

Dimensions

G Thread: M8 RH
L: 90mm
L1: 40mm
L2: 40mm
