螺钉-ZP-M6-RH-15-25-双

螺钉-ZP-M6-RH-15-25-双

£0.48 GBP
£0.00 GBP £0.48 GBP
促销 售罄
结账时计算的运费。

Product Code

160.040.060

10943 件存货
  • 亮锌板表面处理
  • 精密切割螺纹
  • 快速安装
  • 用于固定任何标准 M6 母零件;
这款 M6 BZP 双螺纹螺柱具有 25 毫米木质螺纹和 15 毫米金属螺纹。非常适合安装展示用把手。 也称为木对金属销钉螺钉和吊杆螺栓。

Applications & Advice

Drill a 4mm pilot hole to prevent wood from splitting and to ease installation. You can use a socket drive to install this item by fitting a dome nut or two nuts locked off together on the end of the thread. The machine thread section can also be fitted directly into the chuck of a drill and this can then be used to drive the fitting into the pilot hole. Keep drill torque settings and drill speed as low as possible to prevent damage to the thread.

Technical Info

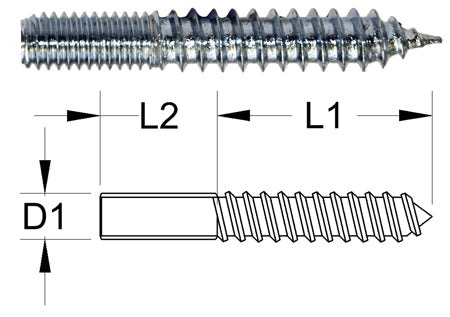

Dimensions

Material: BZP Steel <br> D1: M6 <br> L1: 25mm <br> L2: 15mm <br> ø: 6mm x 1 (Standard Metric Pitch)
