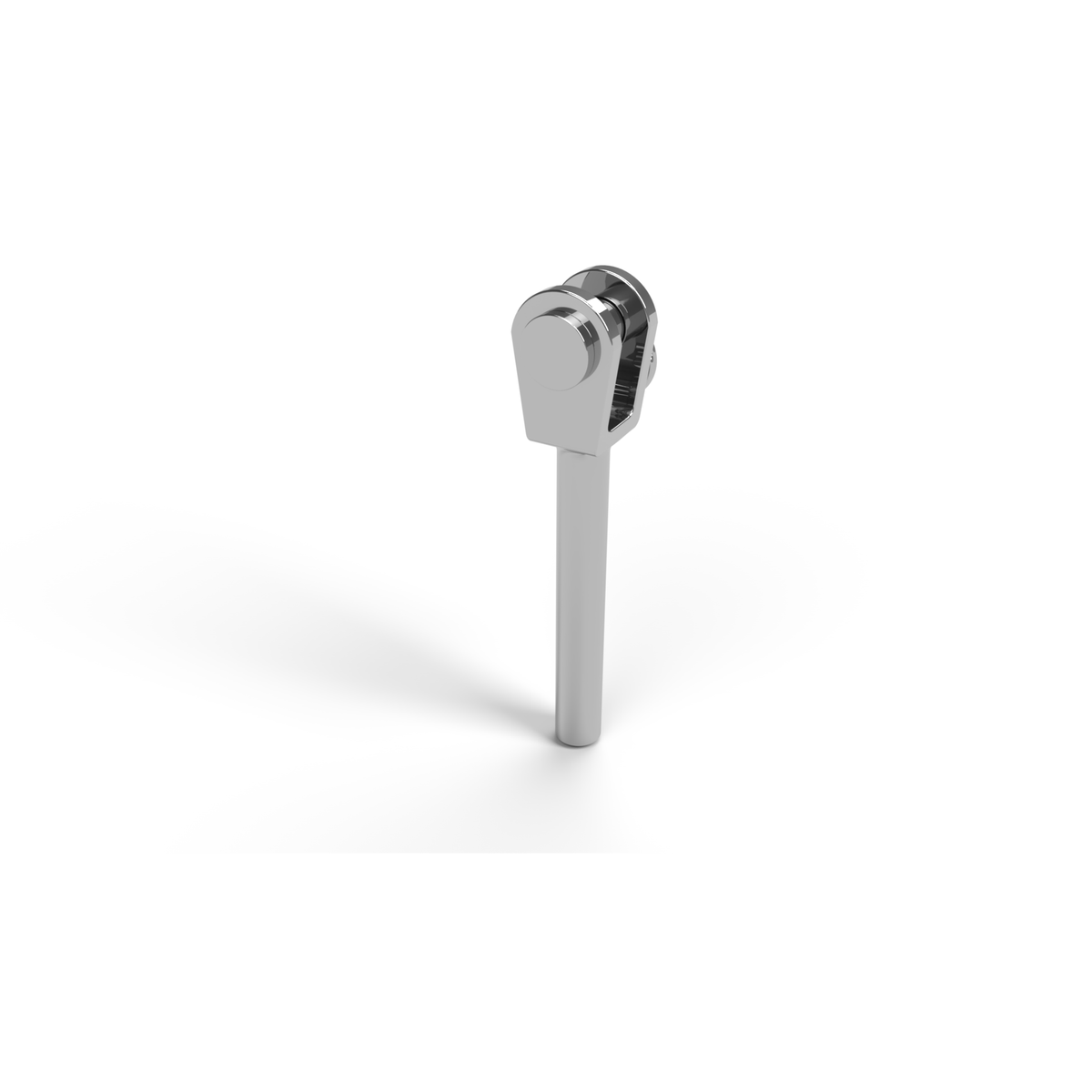

下颌-SS-2-301.020.002

2mm A4 AISI 316 海洋级不锈钢钳口端子。

nbsp;

适用于 2 毫米电缆。正确按压时，此端接的预期强度为电缆 MBL 的 90%。必须进行测试以验证组件的强度。

nbsp;

典型应用：

悬链线

栏杆

悬挂电缆

nbsp;

为了安装，只需将电缆插入接头并使用液压机压接即可。

nbsp;

TECNI 还可以根据您的设计和规格制造组件- 请联系我们的销售团队成员获取进一步的帮助或信息。

Applications & Advice

Typical Applications:

Catenary

Balustrade

Suspension cables

Rigging Cables

To fit, simply insert cable into the fitting and swage using a hydraulic press.

TECNI can fit these for you. Please let us know your requirements.

Technical Information

The expected strength for this end termination when pressed correctly is 90% of MBL of the cable. Testing must be performed to verify the strength of the assembly. Swage using hexagon swaging dies or round swaging dies. Please contact us if you need assistance with fitting these products.
