停止-SS-1.5-薄
停止-SS-1.5-薄
Product Code
SKU:208.606.015
4802 件存货
无法加载取货服务可用情况

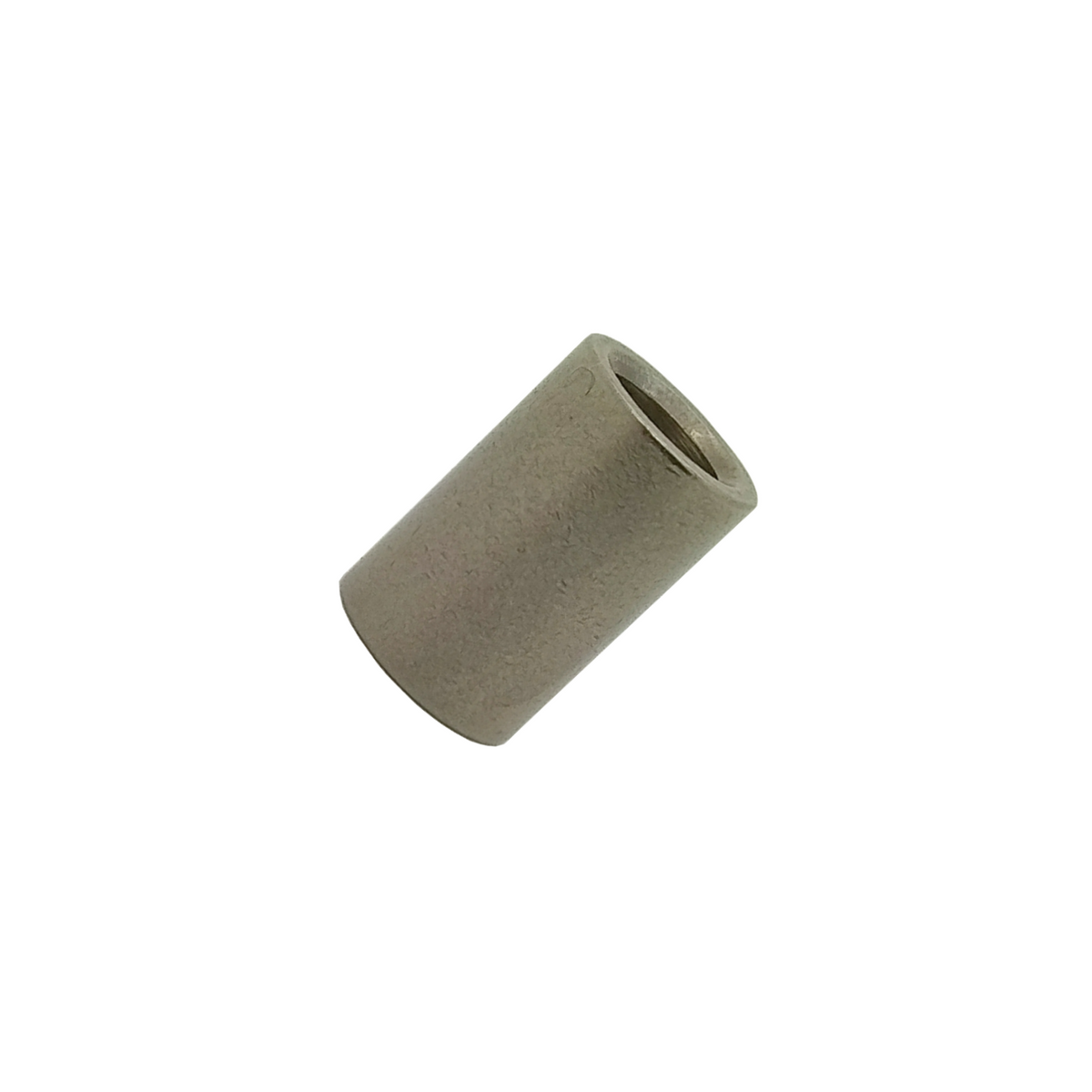

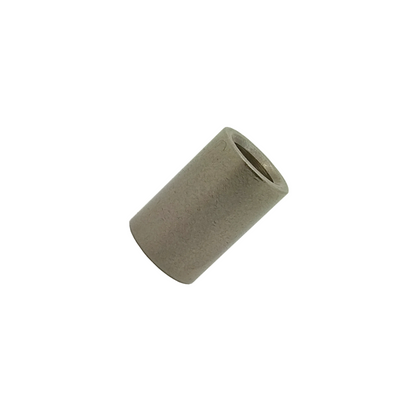

TECNI 1.5mm 316 不锈钢薄壁止动套圈。
nbsp;
适合与1.5毫米电缆一起使用。
nbsp;
端部止动件不适用于起重应用。它们设计用于悬挂和定位目的。这种类型的端部终端的预期强度约为钢丝绳 MBL 的 50%。必须进行测试以验证组件的强度。
nbsp;
不锈钢止动套圈最适合与不锈钢电缆一起使用，以避免在盐水环境中发生电化学腐蚀。
nbsp;
有 1 - 6 号尺码可选
nbsp;
如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。
nbsp;
Applications & Advice
Applications & Advice
Suitable for use with stainless steel cable in non-marine environments where a compact swaged stop termination is required.
Always ensure the ferrule size is compatible with the cable diameter and use suitable tooling and the correct swaging procedure to achieve a secure termination.
Swaging guidance:
1.5mm A4 AISI 316 stainless steel thin walled stops can be fitted using the TECNI Crimping Tool for Thin-Walled Stainless Steel Stops and Bootlace Type Ferrules - 160.100.510 using impression 6.
Downloads
Downloads
Technical Information
Technical Information
End stops are not suitable for lifting applications. They are designed for suspension and locating purposes. The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly
For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.
