CA-1.5-M10-氟-NH

CA-1.5-M10-氟-NH

常规价格 £2.18 GBP
常规价格 £2.18 GBP 促销价 £2.18 GBP
促销 售罄
结账时计算的运费。

Product Code

SKU:175.015.001

数量

159 件存货

适用于 TECNI® 1 - 1.5mm 无涂层电缆,7x7 或 7x19 结构。

带 1 毫米电缆的 WLL - 8 公斤

带 1.2 毫米电缆的 WLL - 12 千克

带 1.5 毫米电缆的 WLL - 15 千克

Applications & Advice

Applications

The TECNI® Two-Part Ceiling Attachment is designed for creating neat, discreet wire rope suspension systems. Suitable applications include suspended lighting, signage, retail displays, exhibition installations and decorative suspension systems.

Cable Installation & Stop Ferrule Requirements

IMPORTANT: A stop ferrule is required to secure the cable within this ceiling attachment. The cable and stop ferrule are not supplied with the ceiling attachment and must be purchased separately.

The cable must be fitted with a correctly sized stainless steel thin-walled stop ferrule, which is crimped onto the cable using the TECNI® Bootlace Crimp Tool.

The stop ferrule provides the termination required to retain the cable within the ceiling attachment.

Recommended Stop Ferrules

1mm Cable

  • Stop Ferrule: 1mm A4-AISI 316 Stainless Steel Thin Walled Stop
  • Product Code: 208.606.010
  • Crimp Tool Impression: 5

1.5mm Cable

  • Stop Ferrule: 1.5mm A4-AISI 316 Stainless Steel Thin Walled Stop
  • Product Code: 208.606.015
  • Crimp Tool Impression: 6

2mm Cable

  • Stop Ferrule: 2mm A4-AISI 316 Stainless Steel Thin Walled Stop
  • Product Code: 208.606.020
  • Crimp Tool Impression: 6

Recommended Crimping Tool

TECNI® Bootlace Crimp Tool
Product Code: 160.100.510

Important: The cable, stop ferrule and crimping tool are not included with the ceiling attachment and must be purchased separately.

Installation Advice

  1. Select the correct cable diameter and matching stainless steel thin-walled stop ferrule.
  2. Pass the cable through the appropriate component of the ceiling attachment before crimping the stop ferrule.
  3. Position the stop ferrule on the cable end.
  4. Using the TECNI® Bootlace Crimp Tool (160.100.510), crimp the stop ferrule using the correct impression and approved pressing procedure.
  5. Check that the stop ferrule is securely attached to the cable.
  6. Install the ceiling attachment using suitable fixings appropriate for the supporting structure.
  7. Assemble the ceiling attachment, ensuring the crimped stop is correctly seated and retained.
  8. Connect the cable to the remaining suspension components and check the complete assembly before applying the intended load.

Important Safety Information

  • The cable, stop ferrule and crimping tool are sold separately.
  • Only use compatible thin-walled stop ferrules and correctly sized cable.
  • Ensure the stop ferrule is correctly crimped before installation.
  • Do not exceed the working load limit of the complete suspension system.
  • The overall working load is determined by the lowest-rated component, including the stop termination and ceiling fixing.
  • Stop ferrules are designed for suspension and locating applications.
  • Assembly testing is required to verify termination strength.
  • Not rated for lifting.

Technical Info

TECHNICAL INFORMATION

Brand: TECNI®
Product Code: 175.015.001
Product Type: CA2 Two-Part Static Ceiling Attachment
Connection Type: M10 Fine Thread
Cable Diameter: 1mm–2mm
Compatible Cable Construction: 7x7 or 7x19
Cable Type: Uncoated Steel Wire Rope
Installation Position: Upper / Ceiling Attachment
Application: Static Suspension Systems
Adjustment Mechanism: None – Static Ceiling Attachment

WORKING LOAD INFORMATION

The existing product listing provides the following cable-specific working load limits:

1mm Cable – WLL 8kg
1.2mm Cable – WLL 12kg
1.5mm Cable – WLL 15kg
2mm Cable – WLL 30kg

These values require confirmation because the existing product title states a maximum WLL of 16kg, while the TECNI® Gripper Suspension Systems datasheet gives a general CA2 rating of 38kg for 2mm cable.

IMPORTANT INFORMATION

Working load limits apply to static suspension applications and depend on the cable, fittings and installation arrangement.

TECNI® published system load ratings are valid only when used with the specified TECNI® cable.

The ceiling fixing, supporting structure and all other components must be suitable for the intended load.

Not rated for lifting.

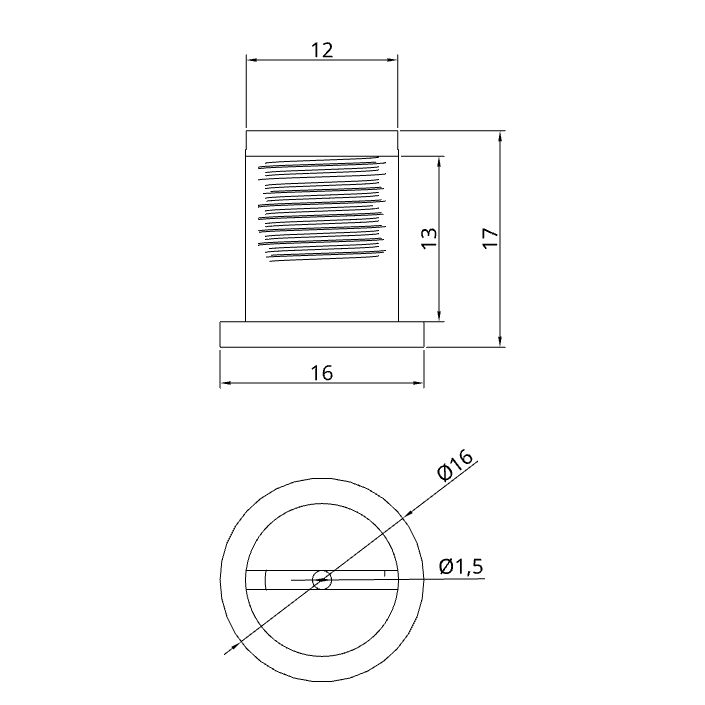

Dimensions
