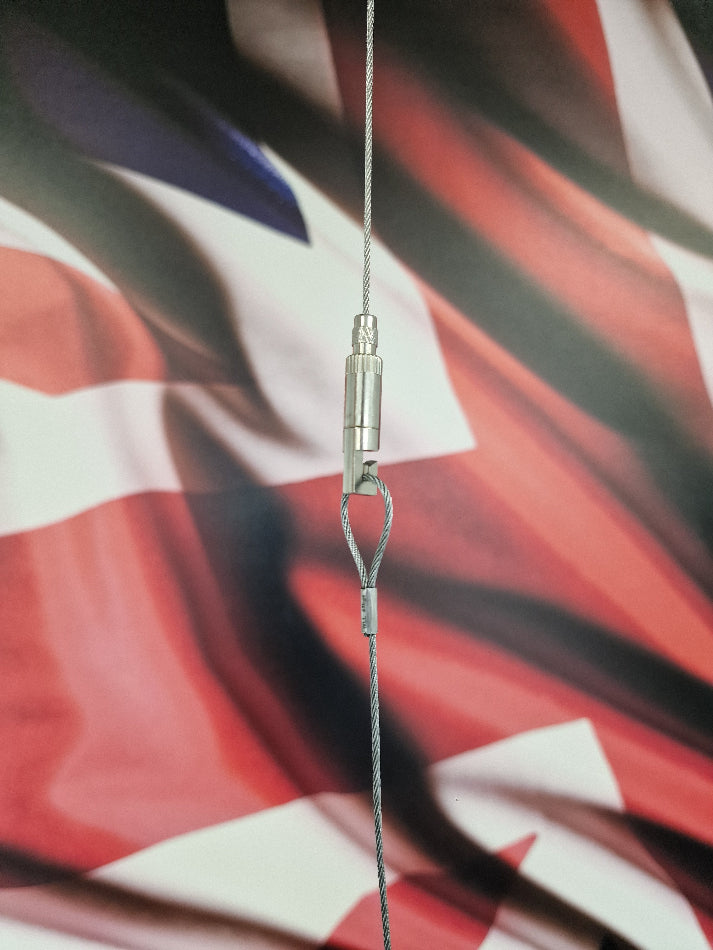

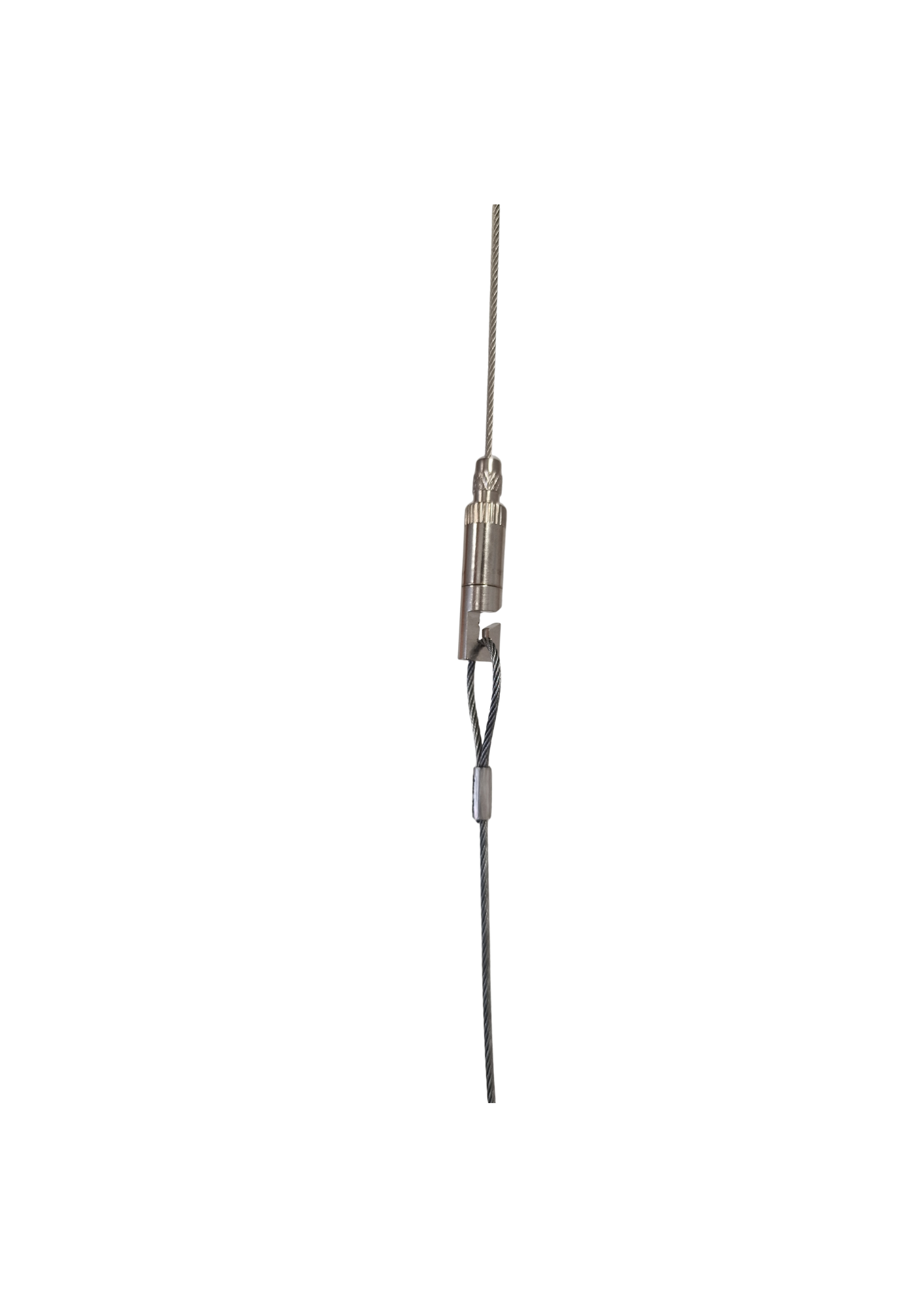

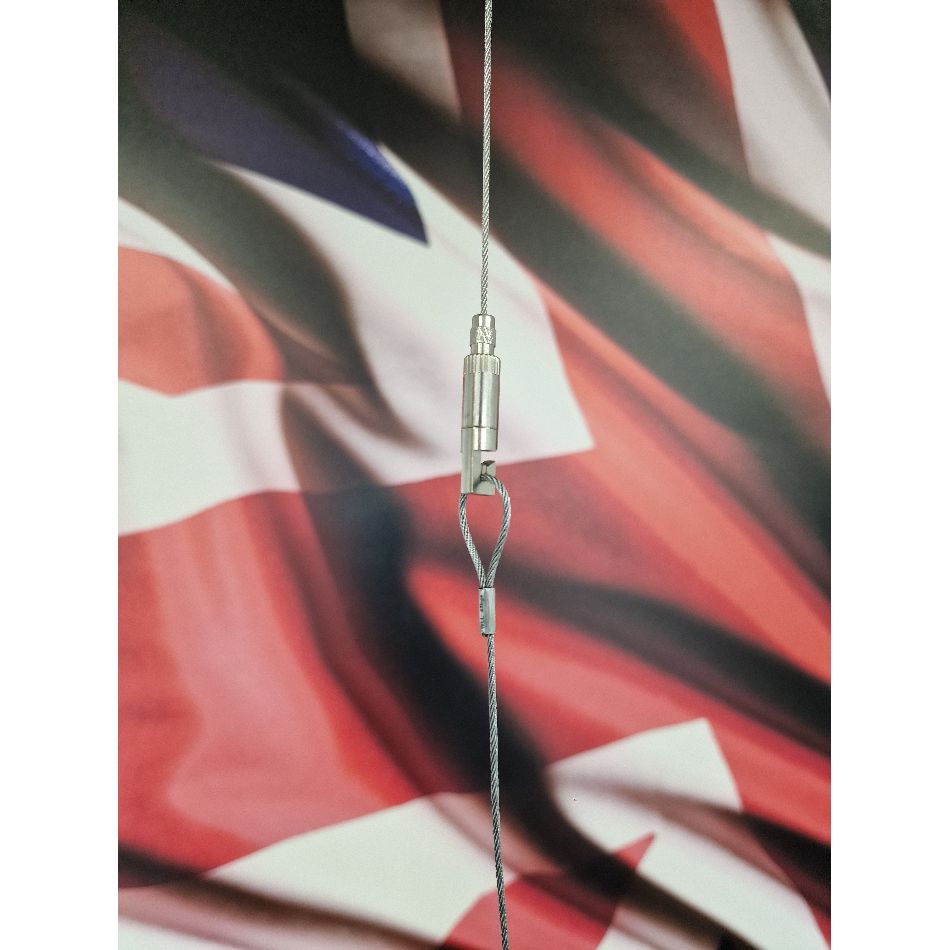

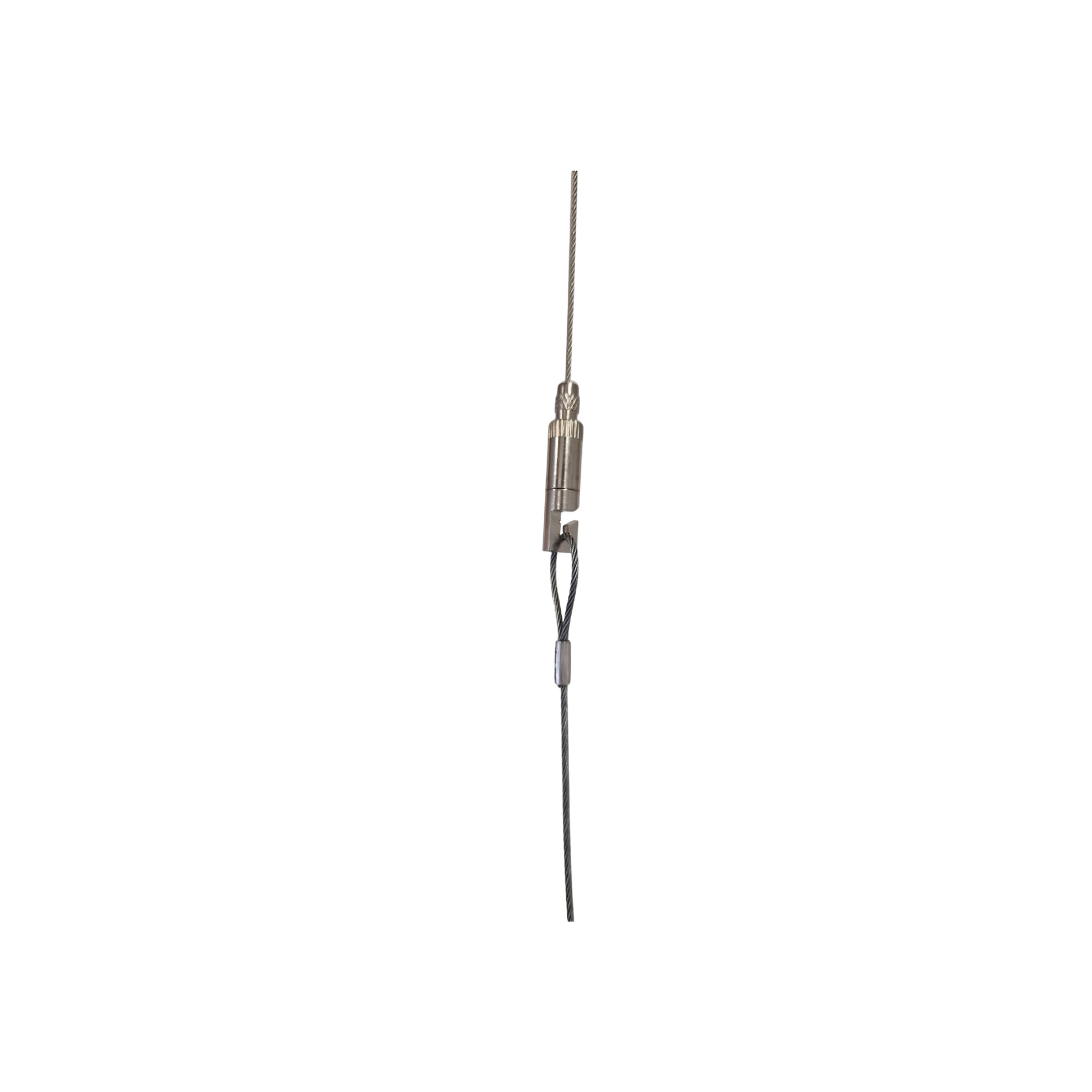

TECNI® Gripper TG1.5 - Hook Glider for use with up to 1.5mm cable. WLL of 16kg - 170.015.002

TECNI® Gripper TG1.5 - Hook Glider for use with up to 1.5mm cable. WLL of 16kg - 170.015.002

常规价格 £3.61 GBP
常规价格 £3.61 GBP 促销价 £3.61 GBP
促销 售罄
结账时计算的运费。

Product Code

SKU:170.015.002

数量

4504 件存货

适用于 TECNI® 1 - 1.5mm 无涂层电缆,7x7 或 7x19 结构。

带 1 毫米电缆的 WLL - 8 公斤

带 1.2 毫米电缆的 WLL - 12 千克

带 1.5 毫米电缆的 WLL - 15 千克

TECNI®Grip Hook 带有微调电缆夹持机构,适用于 1mm 至 1.5mm 的电缆直径,用于电缆展示悬挂应用。

Applications & Advice

Applications

  • Picture hanging and framed artwork
  • Art galleries and exhibition displays
  • Museums and visitor attractions
  • Retail display installations
  • Suspended signage
  • Photography displays
  • Showrooms and commercial interiors
  • Adjustable cable suspension systems
  • Decorative wall displays
  • Lightweight display panels

Picture Hanging Applications

The TECNI® TG1.5 Hook Glider is particularly suitable for creating professional, adjustable picture hanging systems.

The fitting is designed to connect a suspended steel cable to a suitable hanging point on the rear of a picture frame.

In a typical installation, the cable is secured to an appropriate overhead attachment or picture rail suspension system.

The TG1.5 Hook Glider is positioned along the cable, with its integrated hook engaging directly with a suitable D-ring or hanging attachment on the picture frame.

This provides a discreet connection, allowing the picture to hang neatly against the wall without requiring additional cable loops between the hook and frame.

The micro-adjustable gripper mechanism allows the height of the picture to be adjusted along the suspension cable.

This makes the fitting particularly useful in galleries, exhibitions and retail environments where artwork or display arrangements may need to be changed regularly.

Cable Compatibility

Suitable for TECNI® uncoated steel cable in the following diameters:

  • 1mm Cable – 8kg WLL
  • 1.2mm Cable – 12kg WLL
  • 1.5mm Cable – 15kg WLL

Compatible cable constructions:

  • 7x7 Stainless Steel Cable
  • 7x19 Stainless Steel Cable
  • 7x7 Galvanised Steel Cable
  • 7x19 Galvanised Steel Cable

Installation Advice

  1. Select the appropriate cable diameter for the intended application and working load.
  2. Secure the suspension cable to a suitable overhead attachment or picture hanging rail system.
  3. Feed the cable through the TG1.5 Hook Glider.
  4. Position the gripper at the required height along the suspension cable.
  5. Attach the integrated hook directly to a suitable D-ring or hanging point on the rear of the picture frame.
  6. Ensure the hook is fully engaged with the hanging attachment.
  7. Adjust the gripper position until the picture hangs at the required height.
  8. Check that the cable-gripping mechanism has securely engaged before releasing the
