Type 18 M8 Threaded Gripper for use with up to 1.8mm cable. WLL of 30kg - 193.000.005

Type 18 M8 Threaded Gripper for use with up to 1.8mm cable. WLL of 30kg - 193.000.005

常规价格 $9.14 USD
常规价格 $9.14 USD 促销价 $9.14 USD
促销 售罄
结账时计算的运费。

Product Code

SKU:193.000.005

数量

190 件存货

  • 安装极其快速
  • 可供未来项目重复使用
  • 非常紧凑的设计和强大的端接能力
  • 无需专业工具
  • 只需手动安装和调整即可!

这款智能紧凑的 M8 螺纹 2 型镀镍 TECNI ® Grip 接头可容纳 1 毫米至 2 毫米的电缆。安装时,只需将电缆插入柱塞,电缆由接头内的滚珠轴承夹住,可进行无限调节。该接头非常适合悬挂应用,例如灯具、搁板、电缆张紧等。

Applications & Advice

Applications

  • Suspended lighting and light fittings
  • Retail shop fittings and merchandising displays
  • Suspended signage and display panels
  • Architectural wire rope suspension systems
  • Exhibition stands and display installations
  • Adjustable ceiling suspension systems
  • Decorative interior installations
  • Commercial display and presentation systems
  • Bespoke wire rope suspension assemblies

Installation Advice

The Reutlinger Type 18 M8 Male Threaded Cable Gripper is designed for use with compatible steel wire rope from 1mm to 1.8mm in diameter.

The M8 male-threaded connection allows the gripper to be attached to a compatible female-threaded mounting component.

Secure the gripper to a suitable fixing point, ensuring that the threaded connection is correctly engaged and that the supporting structure is appropriate for the intended load.

Insert the cable through the spring-loaded plunger at the top of the gripper and feed it through the internal gripping mechanism.

The internal ball-bearing mechanism automatically grips the cable when tension is applied, allowing the suspension length to be adjusted as required.

Ensure that the cable is correctly aligned with the gripper and that the complete suspension assembly is suitable for the intended installation.

Important Installation Information

  • Suitable for compatible 1mm to 1.8mm steel wire rope.
  • Ensure the M8 male-threaded connection is securely engaged.
  • Use only compatible cable constructions and materials.
  • Ensure the cable is clean, undamaged and free from deformation.
  • Do not exceed the applicable working load limit.
  • Do not adjust the gripper while supporting a load.
  • Avoid excessive sideways loading on the gripping mechanism.
  • Ensure all mounting components and supporting structures are suitable for the intended application.
  • The working load of the complete suspension system must not exceed that of its lowest-rated component.
  • Not rated for lifting.

Technical Info

WORKING LOAD LIMITS (WLL)

7x7 Galvanised Steel Wire Rope – 2,300 N/mm²

1.0mm Cable – WLL 13kg
1.2mm Cable – WLL 18kg
1.5mm Cable – WLL 27kg
1.8mm Cable – WLL 30kg

7x7 Stainless Steel Wire Rope – 1,570 N/mm²

1.0mm Cable – WLL 8kg
1.2mm Cable – WLL 15kg
1.5mm Cable – WLL 20kg
1.8mm Cable – WLL 25kg

MANUFACTURER'S LOAD SPECIFICATIONS

Maximum Published WLL: 30kg
Safety Factor: 5:1

IMPORTANT INFORMATION

The working loads listed are Reutlinger's published ratings for the standard Type 18 three-ball gripping mechanism when used with the specified wire rope.

The maximum WLL of 30kg applies to the specified 1.8mm galvanised steel cable. The corresponding maximum WLL for the specified 1.8mm stainless steel cable is 25kg.

Working load limits depend on cable diameter, construction, material and tensile strength.

The complete suspension system, including the cable gripper, wire rope, threaded connection, mounting components and supporting structure, must be assessed for its intended application.

Do not exceed the working load limit of the lowest-rated component.

Not rated for lifting.

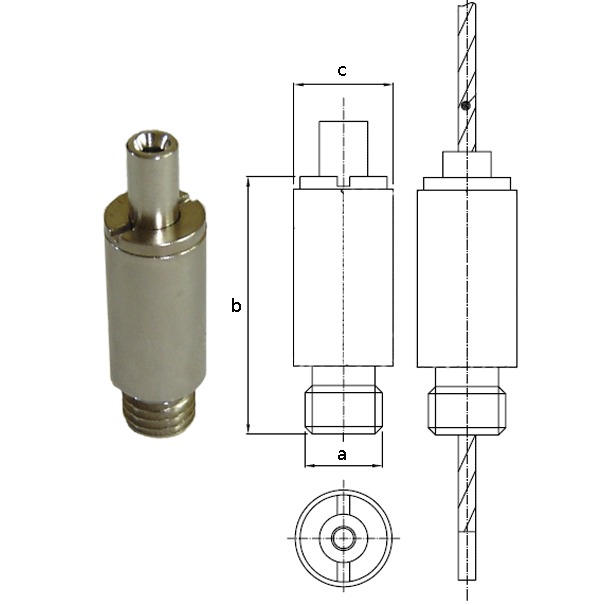

Dimensions
